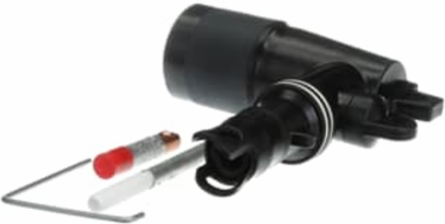

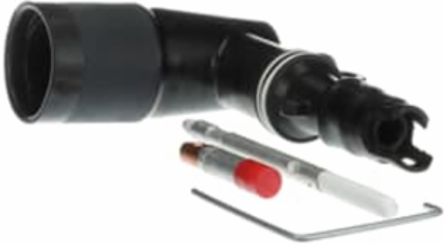

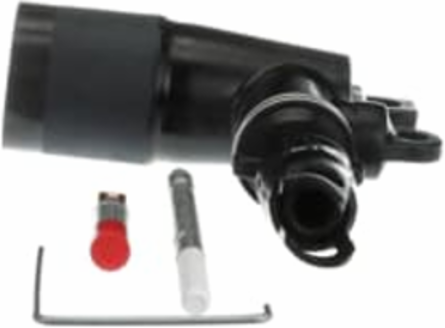

Thomas & Betts 262LRJS-B5210 25KV 200A LB ELBOW WITH JS
- MPN: 262LRJS-B5210
- UPC: 075114377805
- PPN: T-B-262LRJS-B5210
- UNSPSC: 39121421
CAD
$251.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
28kV 200 Amp, Loadbreak Jacket Seal Elbow Connector with Test Point, .635 inch - .905 Inch Cable Insulation Diameter, #3 Stranded/Compressed or #2 Compact/Solid Wire Size, Bi-Metal Compression Lug.
Features
- 25kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Built in cable jacket seal. Non-corrosive capacitive test point
- 28kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Built in cable jacket seal. Non-corrosive capacitive test point
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Buy American Act (BAA) Compliant
- Contact Manufacturer
- Brand Name
- ELASTIMOLD
- Connection
- Compression
- Size
- 11.47 inch length x 8.20 inch width, 2.87 inch Diameter
- Material
- Housing - EPDM Rubber
- Color
- Black
- Insulation
- Yes EPDM Rubber
- Environmental Conditions
- All Weather Conditions
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
Application28 kV, 200 Amp
StandardANSI/IEEE Standard 386
Conductor Range#3 STR/COMPR AWG , #2 SOL/COMPT AWG
Voltage Rating28 kV
Amperage Rating200 A
Temperature Rating-40 to +65 C
