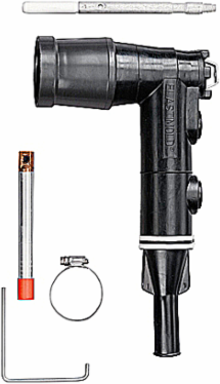

Thomas & Betts 273ELR-88110-5230 Loadbreak Repair Elbow Connector
- MPN: 273ELR-88110-5230
- UPC: 075114307512
- PPN: T-B-273ELR-88110-5230
CAD
$843.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25kV, 200 Amp, Extended Elbow, No Sealing Kit, 200 Amp, 25kV, Loadbreak Repair Elbow Connector, Repair Elbow has extended length contact and elbow housing resulting in a net gain of 3-1/4 inches in length. Includes 02509X long Bi-Metal Contact. Cable Insulation Diameter 0.880 inch to 1.100 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured insulation, insert and jacket. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Extended Length Housing and Compression Lug - plus 3-1/4 inch (82.6mm).
- Standard
- ANSI/IEEE Standard 386
- Connection
- Compression/Crimp
- Material
- Housing - EPDM Rubber
- Voltage Rating
- 25kV
- Insulation
- Yes, EPDM Rubber
- Environmental Conditions
- Fully Submersible
IGCC4586 Electrical connector assembly
TypeLoadbreak Repair Elbow Connector
ApplicationDesigned for connecting to and operating 25kV Class, 125kV BIL apparatus.
SizeWidth 7.55 inches, Length 10.74 inches from bottom to center of Bushing.
Conductor RangeConductor Size #1 Stranded/Compressed or 1/0 Compact/Solid.
ColorBlack
Amperage Rating200 Amps
Temperature Rating-20 Degrees C to +65 Degrees C
Consist OfIncludes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Tube of Lubricant, Installation Instructions, Crimp Chart.
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)3.62x12.56x8.5
