Thomas & Betts K656CY-G0240-SG3 25KV 600A DB CY CONNECTOR W-SEALING
- MPN: K656CY-G0240-SG3
- UPC: 075114355964
- PPN: T-B-K656CY-G0240-SG3
- UNSPSC: 39121421
CAD
$4686.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

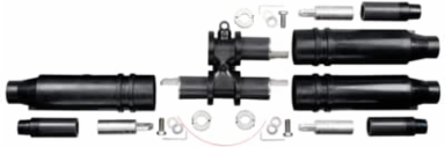

15/25kV, 600 Amp Deadbreak Separable WYE Joint Connector with Test Point. Cable Insulation Diameter G - 0.760 - 0.950 inch. Aluminum Compression Connector. Conductor Size 240 - 1/0 Stranded/Compressed or 2/0 Solid/Compact. Sealing Kit SG3 - Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.
Features
- Fully Shielded, Fully Submersible, 100 Percent Peroxide Cured EPDM Molded Rubber. Cold-Shrinkable Seal with Copper Braid and Constant Force Spring
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | ELASTIMOLD |
| Connection | Compression |
| Size | Overall Length 37.27 inches x Width 8.12 inches not counting 1 inch Test Point |
| Material | Housing - EPDM Rubber |
| Color | Black |
| Insulation | Yes, EPDM Rubber |
| Environmental Conditions | All Weather Conditions |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | Compact Design is suitable for small vaults and manholes |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | 1/0 STR/COMPR AWG , 2/0 SOL/COMPT AWG |
| Voltage Rating | 15 to 25 kV |
| Amperage Rating | 600 A |
| Temperature Rating | -40 to +65 C |
