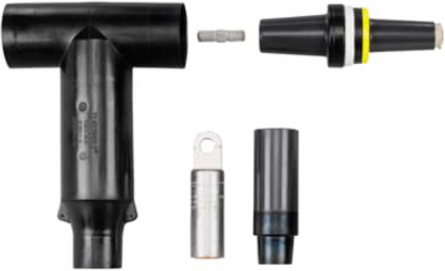

Thomas & Betts K655ETP-M5380 25KV 600A ETP ELBOW KIT M5380
- MPN: K655ETP-M5380
- UPC: 783786522750
- PPN: T-B-K655ETP-M5380
- UNSPSC: 39121421
CAD
$1577.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 25KV, DeadBreak, Elbow Connector, Cable Insulation Diameter 1.370 inch to 1.630 inch. Bi-Metal Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
Specifications
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
Additional Information
| Application | 600 Amps, 25kV |
|---|---|
| Color | Black |
| Current Rating | 600 A |
| Insulation Material | EPDM Rubber |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Size | Cable Insulation Diameter 1.370 inch to 1.630 inch. |
| Temperature Range | -40 to +65 °C |
| Brand / Label | Elastimold |
|---|---|
| Connection Type | Compression |
| Effective Date | 20070420 |
| Material | Housing - EPDM Rubber |
| Product Type | Window-Op Connector |
| Standards | ANSI/IEEE Standard 386 |
| Voltage Rating | 25 kV |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
