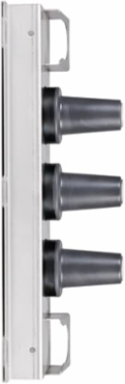

Thomas & Betts K650J3-4 25KV 600A JUNCTION-_RUBBER ONLY
- MPN: K650J3-4
- UPC: 075114370486
- PPN: T-B-K650J3-4
- UNSPSC: 26121630
CAD
$1473.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25kV 600 Amp Series Deadbreak 3-Point Junction, Rubber Junctions only.
Specifications
Additional Information
- Application
- Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass.
- Connection Type
- Push-In
- Material
- EPDM Rubber
- Product Type
- 3-Point Rubber Junction
- Special Functions
- Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for Elastimold 600 Amp Series Elbow connectors. Rubber Junction Only.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Effective Date20180406
Product NameELECTRICAL CONNECTOR,>1000V
Size5.87 inches (149. mm) Tall, 6.75 inch (171.5 mm) Wide, 19.00 inch (483.0 mm) Long, 4.00 inch (102 mm) Center Junction to Center Junction. 5.50 inch (139.7 mm) Center Slot to Center Slot on Short Side, 8.00 inch (203.0 mm) on Long Side, and 1.50 inch (38.1 mm) Center Slot from Edge on Long Side.
StandardsANSI/IEEE Standard 386.
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)1779 >> Cable accessories
