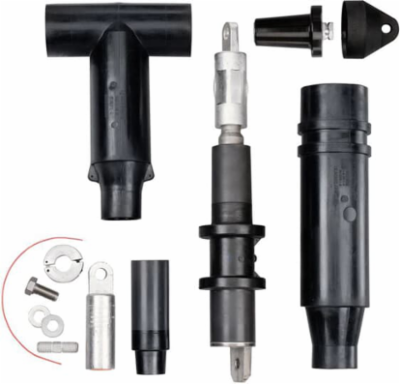

Thomas & Betts K656RLR-P0380-S 25KV 600A REPLACEMENT ELBOW
- MPN: K656RLR-P0380-S
- UPC: 075114378413
- PPN: T-B-K656RLR-P0380-S
- UNSPSC: 39121421
CAD
$3176.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 15/25kV, 600 Series Deadbreak, Replacement Elbow with Test Point, Cable Insulation Diameter 1.725 inch to 1.935 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900. Cold-Shrinkable Jacket Seal.
Specifications
Additional Information
- Application
- Used where Cable has been severed and is not long enough to reach the Elbow.
- Color
- Black
- Current Rating
- 600 A
- Environmental Conditions
- All Weatheronditions °C
- Insulation Material
- Yes EPDM Rubber
- Product Name
- ELECTRICAL CONNECTOR>1000V
- Size
- Length 31.56 inches
- Standards
- ANSI/IEEE Standard 386
- Voltage Rating
- 15 to 25 kV
Brand / LabelElastimold
Connection TypeCompression
Effective Date20180815
IncludesElbow Connector Housing, Lubricant, Stud, Replacement Housing, Insulated Plug, Cable Adapter, Connector, Adapter Retaining Ring, Installation Instructions, Crimp Chart
MaterialHousing - EPDM Rubber
Product TypeDeadbreak Replacement Elbow Connector with Test Point
Special FunctionsFully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Rubber. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Non-Corrosive Capacitive Test Point. Cold Shrinkable Jacket Seal.
Temperature Range-40 to +65 °C
Classifications
- IDEA Granular Category Code (IGCC)
- 4586 >> Electrical connector assembly
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
