Thomas & Betts K656ETP-P0410-DRG 25KV 600A WINDOW OP KIT W-CAP
- MPN: K656ETP-P0410-DRG
- UPC: 075114430807
- PPN: T-B-K656ETP-P0410-DRG
- UNSPSC: 39121421
CAD
$1310.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

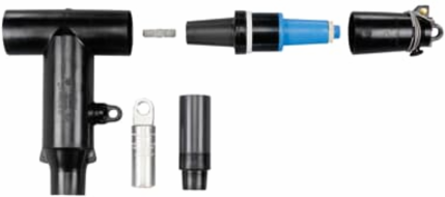

600 Amp, 25kV, Deadbreak Elbow, Test and Ground Replacement Kit with Test Point. Cable Insulation Diameter 1.725 inch to 1.935 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 1000 kcmil. With Insulated Cap.
Features
- Capacitive Test Point, Insulated Cap
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | ELASTIMOLD |
| Connection | Compression |
| Size | Cable Insulation Diameter 1.725 in to 1.935 in |
| Material | Housing - EPDM Rubber |
| Color | Black |
| Insulation | Yes, EPDM Rubber |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | 600 Amps, 25 kV |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | 100 STR/COMPR kcmil |
| Voltage Rating | 25 kV |
| Amperage Rating | 600 A |
| Temperature Rating | -40 to +65 C |
