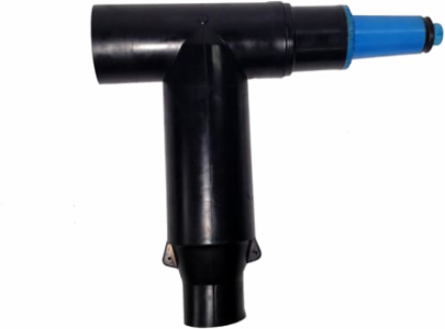

Thomas & Betts K655CETPL5270 25KV COMBO T REDUCING TAP PLUG
Thomas & Betts K655CETPL5270 25KV COMBO T REDUCING TAP PLUG
- MPN: K655CETPL5270
- UPC: 783786972784
- PPN: T-B-K655CETPL5270
- UNSPSC: 39121421
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2955.58/ EA
Description
15/25kV, 600 Amp, no test point, Combo T Elbow Reducing Plug with Stud, Cable Adapter, Lug and Insulated Cap Kit. Cable Insulation Diameter 1.180 inch to 1.465 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 4/0 /Compacted Solid 250 /mmSquared Compact 125.
Specifications
Additional Information
- Application
- 600 Amps, 25kV Connector
- Color
- Black
- Effective Date
- 20130308
- Includes
- Includes Elbow Connector Housing, Stud, Lug, Tube of Lubricant, Cable Adapter, Crimp Chart and Installation Instructions.
- Material
- Housing - EPDM Rubber
- Product Type
- ComboT Elbow
- Special Functions
- Reducing Tap Plug with Stud
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Current Rating600 A
Environmental ConditionsAll Weatheronditions °C
Insulation MaterialYes, EPDM Rubber
Product NameELECTRICAL PLUG>1000V
Size13.31 inches width, 10.88 inch bottom edge to center of bushing.
StandardsANSI/IEEE Standard 386
Voltage Rating25 kV
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
