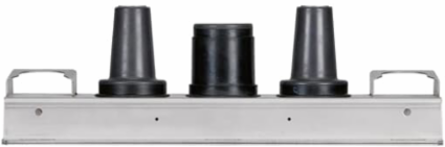

Thomas & Betts J3-626-25-SV 25KV J-MULTIPOINT JUNCTION W-SV
- MPN: J3-626-25-SV
- UPC: 075114405348
- PPN: T-B-J3-626-25-SV
- UNSPSC: 26121630
CAD
$3549.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
3 Point Junction, with one 600 Amp Bushing Interface, one 200 Amp Bushing Well Interface and one 600 Amp Bushing Interface, 25kV, SV - Optional 6-1/2 inch Centers.
Specifications
Additional Information
| Application | Suited for Subsurface, Vault or Padmount Applications and can be used for Sectionalizing, Looping, Tapping and Equipment Bypass. |
|---|---|
| Connection Type | Push-In |
| Material | EPDM Rubber and Stainless Steel Mounting Brackets |
| Product Name | ELECTRICAL CONNECTOR>1000V |
| Size | Overall Length 17 inches Width 6-3/4 inch |
| Standards | ANSI/IEEE Standard 386 |
| Brand / Label | Elastimold |
|---|---|
| Effective Date | 20191017 |
| Product Main Type | ELASTIMOLD 600A SEPARABLE CONNECTORS |
| Product Type | Multi-Point Junction - 3 Points |
| Special Functions | 6-1/2 inch Center Spacing |
| Temperature Range | -40 to +65 °C |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
