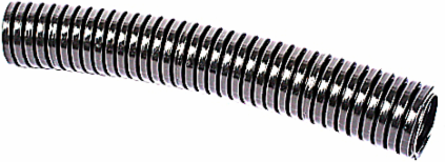

Adaptaflex PACH28/CB/100FT Heavyweight Conduit 28mm Nominal, IP68, 100 Feet, Polyamide (Nylon)
- MPN: PACH28/CB/100FT
- UPC: 786210241067
- PPN: T-B-PACH28/CB/100FT
CAD
$858.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heavyweight Conduit, Nominal Conduit Size 28mm, NW Conduit Size 23, Coarse Conduit Pitch, Outside Diameter 28.5mm, Inside Diameter 21.3mm, Static Bend Radius 70mm, Reel Length 100 Feet, Polyamide (Nylon) 6, Carribean Blue
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39131706 Electrical conduit
- Brand Name
- Adaptaflex
- Special Features
- Very High UV Protection and Fatigue Life
- Trade Size
- 28mm
- Inside Diameter
- 21.3mm
- Radius
- 70mm
- Material
- Polyamide/Nylon 6
IGCC5535 Electrical conduit
TypeHeavyweight Conduit with Coarse Pitch
ApplicationIndoors / Outdoors - Rail, Heavy Industrial, Buildings & Machinery
Outside Diameter28.5mm
Length100 ft
FlexibilityMedium
ColorBlue
Packaging
- Inner Quantity
- 1
- Outer Dimensions (inches)
- 1x1x1
Outer Quantity1
Weight Uom8.74 lbs. Each
European Specifications (ETIM)
- ETIM
- EC001175 Corrugated plastic hose
- Outer diameter
- 28.5mm
- Material
- Polyamide 6
- Degree of protection (IP)
- IP68
- UV resistant
- Y
- Sheathing material
- Not sheathed
- Lengthwise slotted
- N
- Approved according to DIN EN 61386-23
- Y
- Approved according to Lloyd's Register TA
- Y
Nominal diameter28mm
Inner diameter21.3mm
Operating temperature-40-+120°C
Fire resistance in accordance with UL94V2
ColourBlue
Bending strengthFlexible
Halogen freeY
Approved according to LUL/British StandardY
Approved according to NF F 16-101Y
