Documentation & Downloads

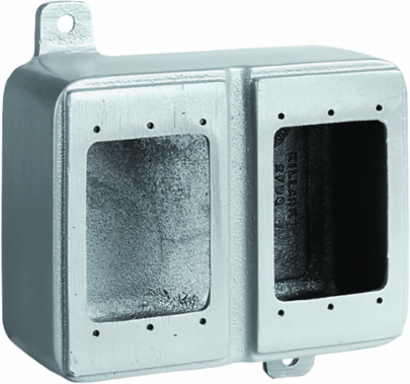

Killark 2FDQ Drilled & Tapped Device Box 7 x 1 x 5 Inch, 2 Outlets, Aluminum, NPT Threads
- MPN: 2FDQ
- UPC: 783936150826
- PPN: HBL-2FDQ
- UNSPSC: 39121308
CAD
$286.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
2FDQ Series Fittings- FSQ/FDQ Drilled and Tapped Device Boxes
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- FDQ Series boxes are made with individual cover openings so any combination of devices may be assembled. Any assembly is suitable for wet and damp locations when it consists of the box and a cover suitable for wet and damp locations.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Height
- 5 in
- Application
- Accommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
- Number of Outlet
- 2
- Special Features
- FDQ Series boxes are made with individual cover openings so any combination of devices may be assembled. Any assembly is suitable for wet and damp locations when it consists of the box and a cover suitable for wet and damp locations.
- Width
- 1 in
- Number Of Outlets
- 2
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 2.76
- Series
- F Series
- BOX SIZE
- 10.000x12.125x7.000 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936150826
- Item Package Type
- K-PAK
- NAICS Code
- 3359326103
Dimensions7 in x 1 in x 5 in
Length7 in
ColorGray
Size7 in x 1 in x 5 in
TypeDevice Box
Finish TypePowder Epoxy Paint
ARRA CompliantContact Manufacturer
Description - InvoiceDEVICE BOX 2GANG DEEP AL
Harmonization Code7616995190
Lead Time20 wk
Order Multiple1 EA
Sub Class CodeD30D233
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack13.800 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
