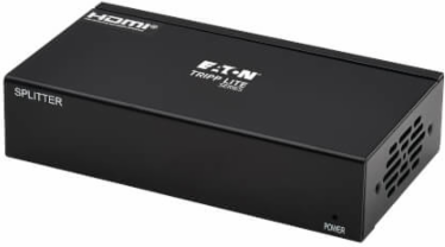

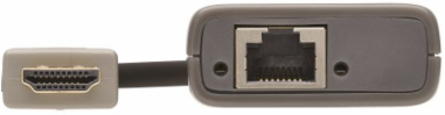

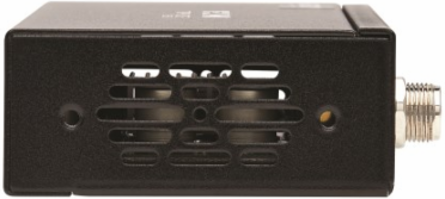

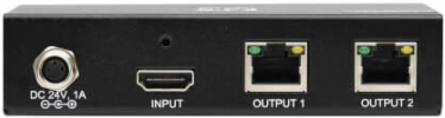

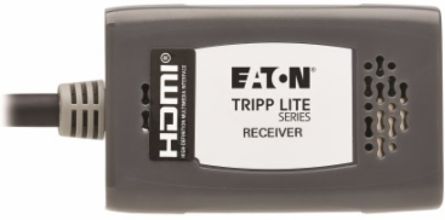

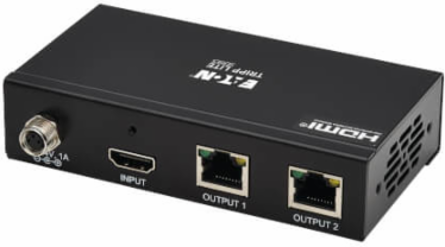

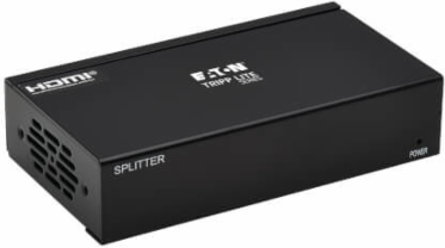

Tripp Lite B127A002BHPH2 2-Port HDMI over Cat6 Extender Kit, Splitter/2x Pigtail Receivers - 4K 60 Hz, HDR, 4:4:4, PoC, 230 ft. (70.1 m), TAA

  • MPN: B127A002BHPH2
  • UPC: 037332263926
  • PPN: TRP-B127A-002-BHPH2

CAD

$570.95

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

2-Port HDMI over Cat6 Extender Kit, Splitter/2x Pigtail Receivers - 4K 60 Hz, HDR, 4:4:4, PoC, 230 ft. (70.1 m), TAA

Features

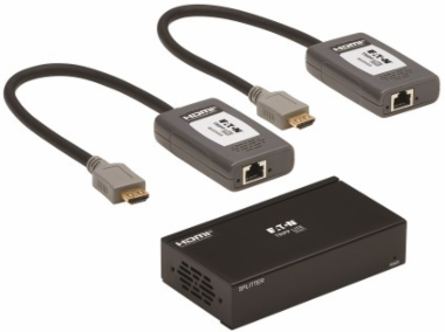

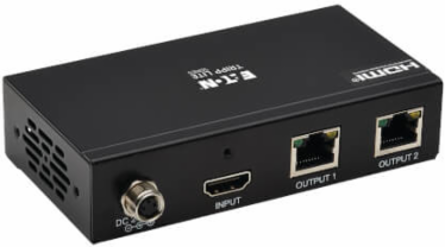

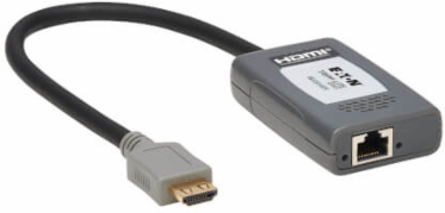

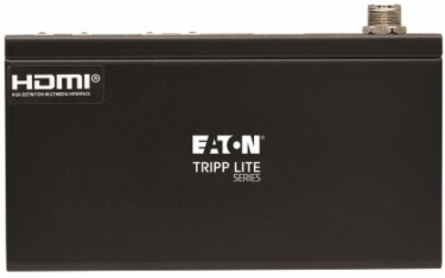

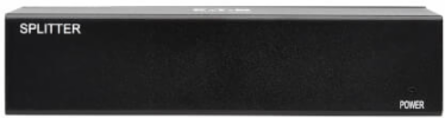

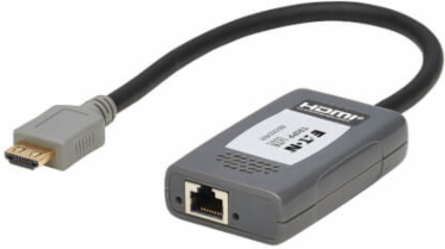

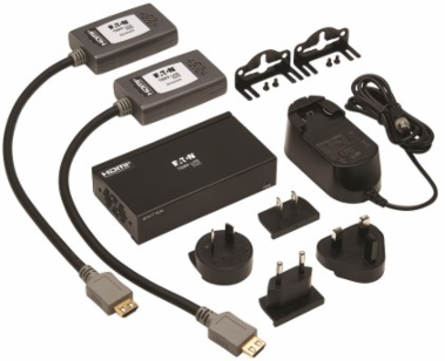

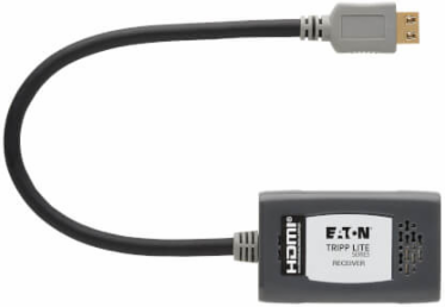

  • Includes 2-Port HDMI over Cat6 Splitter and (2) 1-Port HDMI over Cat6 Pigtail Receivers
  • External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A); includes 4 international plug adapters (North America, U.K., Europe, Australia)
  • Mounting hardware included

Documentation & Downloads

Specifications

Dimensions

Transmitter Unit Dimensions2.7 x 11.5 x 6.24 in
Receiver Unit Dimensions1.86 x 4.7 x 7.5 in

Material

MaterialMetal
ColorBlack

Compliance

Product Warranty1-year limited warranty

Reference

Product TypeSplitter; Extender Kit
Recommended CablingSolid Wire Cat6

Performance

Max Supported Video Resolution3840 x 2160 @ 60Hz
Max Supported Color Depth36-bit True Color
Maximum Distance with Booster400 ft
HDCP Specification1.4; 2.2
Video InputHDMI (Female)
Input x Output1 x 2
Daisy-chainableNo
AC Power Adapter Output24V / 1A
Operating Temperature Range32° to 104°F (0° to 40°C)
Relative Humidity0-85% non-condensing
Chroma Subsampling4:4:4
Transmission Distance230 ft (70.1 m)
Audio SpecificationTrue uncompressed 7.1 Channel digital audio
TechnologyHDMI; Cat6; PoC
Video Output(2) HDMI (Male) pigtail
Number of Monitors Supported2
AC Power Adapter Input100-240V / 50/60Hz / 0.6A
Receiver Power SourcePower Over Cable
Storage Temperature Range5° to 122°F (-15° to 50°C)
