Tripp Lite N48S2L24L20 Preloaded Fiber Panel, 1U - 2x (12x LC/LC Duplex M/M) 24F Trunk Cables, OS2 Singlemode, 20 m (65.6 ft.)

MPN: N48S2L24L20
UPC: 037332262479
PPN: TRP-N48S-2L24L-20

$2653.89

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

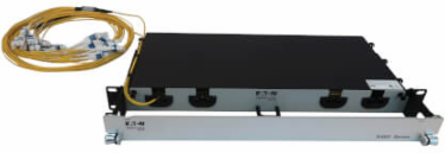

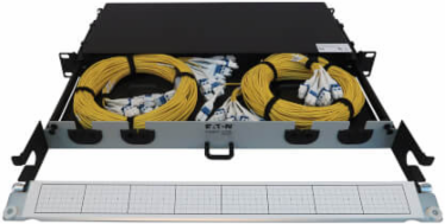

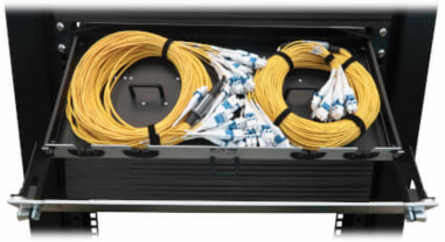

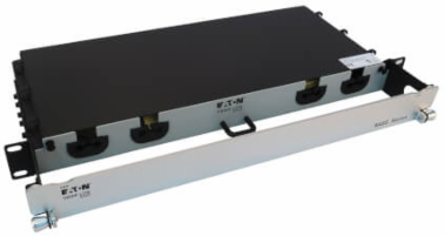

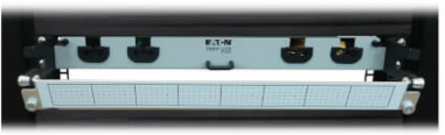

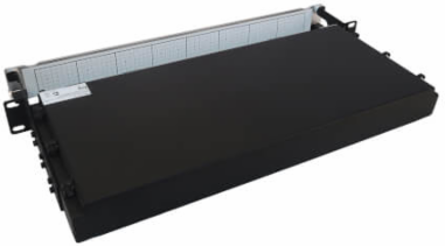

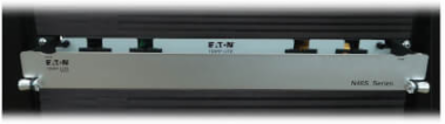

Preloaded Fiber Panel, 1U - 2x (12x LC/LC Duplex M/M) 24F Trunk Cables, OS2 Singlemode, 20 m (65.6 ft.)

Features

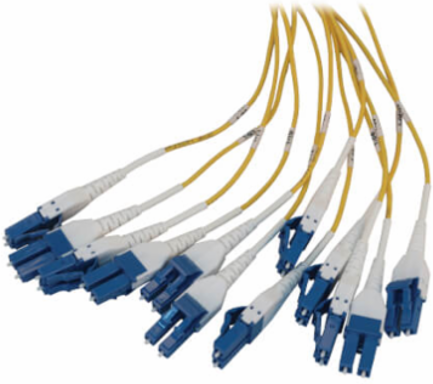

(2) LC Duplex to LC Duplex trunk cables, 20 m (65.6 ft.)
Installation guide included

Documentation & Downloads

Specifications

Dimensions

Panel Dimensions	17.32 x 1.73 x 10.20 in
Fiber Cable Length	20 m (65.6 ft)
Side B Connector	(12) LC Duplex (Male)
Number of Fibers	24
Core Diameter	9
Cable Outer Diameter	2.9 mm
Offset Ports	No

Panel Cable Number	2
Side A Connector	(12) LC Duplex (Male)
Optical Port	LC
Clad Diameter	125
Primary Coating Diameter	245
Primary Form Factor	Rackmount

Compliance

Product Warranty Period	Lifetime limited warranty

Material

Product Type	Preloaded
Panel Style	Preloaded Fiber Panel
Cable Jacket Color	Yellow
Cable Jacket Material	PVC
All-in-One Kit	Yes

Technology	Singlemode
Endface Polish	UPC
Connector Color	Blue; White
Cable Jacket Rating	OFNP

Performance

Network Compatibility	1 Gbps (Gigabit); 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps; 400 Gbps
Attenuation @ 1310NM	0.36 dB/km
Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Operating Humidity Range	5% to 85% RH, Non-Condensing
Minimum Bend Radius	20 mm (Dynamic); 10 mm (Static)

Wavelength	1310nm; 1550nm
Attenuation @ 1550NM	0.22 dB/km
Storage Temperature Range	-4° to 140°F (-20° to 60°C)
Storage Humidity Range	5% to 85% RH, Non-Condensing
