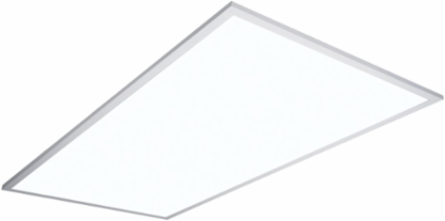

2x4 LED Recessed Flat Panel 4700 Lumen 4000K 80 CRI
Cooper Lighting Solutions

Cooper Lighting Solutions 24FP4740C 2x4 LED Recessed Flat Panel 4700 Lumen 4000K 80 CRI

  • MPN: 24FP4740C
  • UPC: 080083833665
  • PPN: COL-24FP4740C
  • UNSPSC: 30161602

CAD

$117.21

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

FPanel LED panel series provides premium performance and pleasing aesthetics.The luminaire is optimized for shallow plenum grid ceilings but may also besurface or the 2x2 can be suspension mounted. Developed using Eaton’s latest generation of solid-state components and electronic driver technologies, these panels are ideal for both new construction and renovation of existing fluorescent troffers. The panel’s refined visual optics, superior acrylic light guide and integrated grid retention clips provide the features needed for installation, speed and flexibility. LED FPanels are an excellent lighting solution for commercial office spaces, schools, healthcare facilities and retail merchandising areas.

Features

  • 50.0 IN Length 24.5 IN Width 2.125 IN Height
  • Ultra thin 1.75" height fits shallow plenums with room to spare
  • Standard and High Lumen models up to 7000 lumens
  • Up to 124 lumens per watt delivering up to 53% energy savings
  • Stock CCT available in 3500, 4000 and 5000K
  • 80 CRI standard with 90 CRI option
  • UNV driver and 0-10V dimming standard
  • Lumen maintenance L73, 60K hours
  • Superior optics ensure long life, smooth corner to corner illumination
  • Easy to install - wire and wire nuts included

Documentation & Downloads

Specifications

Key Specifications

Length
50.0 Inches
Height
2.125 Inches
Country of Origin
CN
Color Temperature
4000K
Lamp Type
LED
Mounting
Recessed
Wattage
40 W
MarketPro US Flag
Yes
Pallet Quantity
22
Width24.5 Inches
Weight23.88 Pounds
Amperage Rating.15A @ 277V
Stock Guide Digital Catalog Dimensions2'x4'
Lumens4858
Voltage Rating120/277V
ARRA CompliantNo
Case Quantity1
