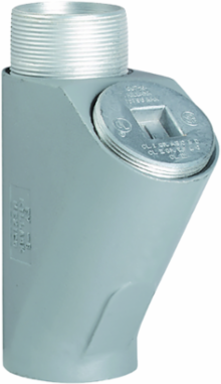

Killark EY-9TM 3-1/2 Inch EY Seal Fitting Iron with Nipple, Duraloy Iron, Hazardous Location Certified
- MPN: EY-9TM
- UPC: 783936111612
- PPN: HBL-EY-9TM
- UNSPSC: 39131708
CAD
$1815.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
3-1/2" EY Seal Fitting Iron, w/nipple Male/Female
Features
- Large opening for easy packing of fiber and pouring of compound
- Integral bushings in conduit hubs to protect conductor insulation from damage
- NPT tapped hubs to ensure ground continuity
- 25% conductor fill
- EY-T style supplied with removable close nipples
- Duraloy iron. Tri-coat finish of electrozinc, chromate sealant, and electrostatically applied powder coating.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Color
- Gray
- Hub Size
- 3-1/2"
- Type
- Sealing Fitting With Nipple
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- SEAL FTG FE 3-1/2" W/ NIPPLE
- Harmonization Code
- 7307199060
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 21.5
- Material
- Iron
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936111612
- NAICS Code
- 3359323119
Width5.188 in
ApplicationClass I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
FinishPowder Epoxy Paint
Special FeaturesDuraloy iron. Tri-coat finish of electrozinc, chromate sealant, and electrostatically applied powder coating.
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
UL File NumberE10514
SeriesEY Series
BOX SIZE(in)
Master Pack DescriptionEach
