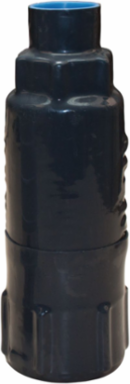

Killark AF-350GG 3-1/2 Inch Polyolefin Coated ZA12 Expansion Fitting With 4 Inch Movement
Killark AF-350GG 3-1/2 Inch Polyolefin Coated ZA12 Expansion Fitting With 4 Inch Movement
- MPN: AF-350GG
- UPC: 783936155562
- PPN: HBL-AF-350GG
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
3-1/2" Hub, Polyolefin Coated ZA12 Expansion Fitting With 4" Linear Movement
Features
- Superior corrosive resistant ZA12 zinc alloy casted body and end coupling
- A 40 mil Polyolefin exterior coating
- Includes type "A" phenolic insulating bushing
- PTFE synthetic fiber reinforced gasket with steel washer to help maintain a strong seal
- Tinned braided copper ring
- Rain, water and concretetight
- AF Coated Series Expansion fittings are for use with IMC or rigid conduit installations. The AF Coated Series adds additional corrosion resistance in applications where abnormal environmental conditions exist. This series still prevents damage of the electrical installations typically used in buildings and bridges by compensating linear movement due to temperature fluctuation or structural movement. This series provides maximum 4” conduit movement (2” in either direction).
Specifications
Specifications
- Country of Origin
- United States
- Finish Type
- Polyolefin Coated
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 3-1/2" ZA EXPANSION FITTING 4" MVMT CTD
- Harmonization Code
- 7907002000
- MSDS Flag
- No
- Material
- Zinc Alloy, ZA12
- Base Unit of Measure
- EA
Hub Size3-1/2"
TypeExpansion
Class CodeD30
Freight Class Code06168002
Image Actual Or RepresentativeR
Sub Class CodeD30D240
SeriesAF Series
Carton - SCC-14 Next Lower Level Sub Pack00783936155562
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Downloads
