Killark FSCA-2 Aluminum Shallow Device Box 3/4 Inch, 1 Outlet, Wet Location Suitable, Gray
Killark FSCA-2 Aluminum Shallow Device Box 3/4 Inch, 1 Outlet, Wet Location Suitable, Gray
- MPN: FSCA-2
- UPC: 783936192345
- PPN: HBL-FSCA-2
- UNSPSC: 39121308
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$95.09/ EA
Description

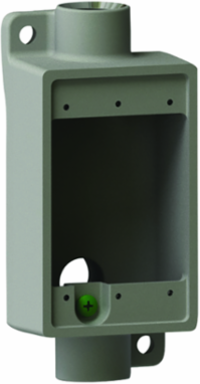

3/4"Aluminum, FSCA Type Shallow Device Box
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- Tapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
Specifications
Specifications
- Country of Origin
- United States
- Height
- 2 in
- Length
- 1 in
- Color
- Gray
- Size
- 1 in x 1 in x 2 in
- Type
- Device Box
- Engineering Drawing 1 Display Text
- FSCA-2 Engineering Drawing
- Number Of Outlets
- 1
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- FSCA
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.600 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 4
Dimensions1 in x 1 in x 2 in
Hub Size3/4"
ApplicationAccommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
Number of Outlet1
Special FeaturesTapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
Width1 in
Finish TypePowder Epoxy Paint
ARRA CompliantContact Manufacturer
Description - Invoice3/4" FS BOX SHAL "CA" ALUMINUM
Harmonization Code7616995190
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D233
Gross Weight with Packaging0.9
UL File NumberE3397
SeriesF Series
BOX SIZE4.000x11.750x7.250 (in)
Carton - Number of Sub Packs4
Carton - SCC-14 Next Lower Level Sub Pack00783936192345
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
