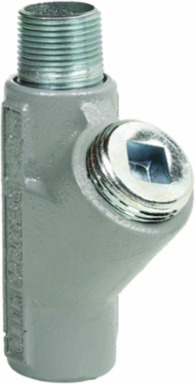

Killark EY-75TM 3/4 Inch Vertical Seal Fitting Iron with Nipple, Grit Finish, 5 Inch Length
- MPN: EY-75TM
- UPC: 783936090290
- PPN: HBL-EY-75TM
- UNSPSC: 39131708
CAD
$119.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
3/4" EY Vertical Seal Fitting Iron, w/nipple Male/Female
Features
- Large opening for easy packing of fiber dam and pouring of compound.
- Integral bushings in conduit hubs to protect conductor insulation from damage.
- NPT tapped hubs to ensure ground continuity.
- Design provides minimum turning radius.
- 25% conductor fill.
- Supplied with removeable close nipples.
- Duraloy iron. Tri-coat finish of electrozinc, chromate sealant, and electrostatically applied powder coating.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Color
- Gray
- Height
- 0.1 in
- Length
- 5 in
- Type
- Sealing Fitting With Nipple
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 1.18
- Series
- EY Series
- BOX SIZE
- 4.750x15.250x9.375 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936090290
- Master Pack Description
- Each
Dimensions5 in x 10 in x 0.1 in
ApplicationClass I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
FinishPowder Epoxy Paint
Hub Size3/4"
Special FeaturesDuraloy iron. Tri-coat finish of electrozinc, chromate sealant, and electrostatically applied powder coating.
Width10 in
ARRA CompliantContact Manufacturer
Description - InvoiceSEAL FTG FE 3/4" W/NIPPLE
Harmonization Code7307110030
Lead Time49 wk
Order Multiple1 EA
Sub Class CodeD30D237
MaterialIron
Base Unit of MeasureEA
Carton - Gross Weight per Pack6.040 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
NAICS Code3359323110
