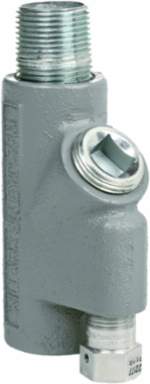

Killark EYD-75-T 3/4 Inch Aluminum Drain Seal Fitting with Nipple, Copper-Free, NPT Tapped Hubs
- MPN: EYD-75-T
- UPC: 783936090399
- PPN: HBL-EYD-75-T
- UNSPSC: 39131708
CAD
$321.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
3/4" EYD Drain Seal Fitting Aluminum with Nipple
Features
- Large opening for easy packing of fiber and pouring of compound
- Integral bushings in conduit hubs to protect conductor insulation from damage
- NPT tapped hubs to ensure ground continuity
- 25% conductor fill
- EYD-T style supplied with removable close nipples
- Simple to install internal drain to allow condensation to weep and conduit system to breathe
- Copper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Application
- Class I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
- Finish
- Powder Epoxy Paint
- Hub Size
- 3/4"
- Special Features
- Copper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
- Width
- 10 in
- General Literature Asset 2 Display Text
- ENY EYD Cross Reference Guide
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- SEAL FTG AL 3/4" DRAIN W/ NIPPLE
- Harmonization Code
- 7609000000
- Lead Time
- 49 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 6.040 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 4 EA
- NAICS Code
- 3359323110
Dimensions5 in x 10 in x 0.1 in
ColorGray
Height0.1 in
Length5 in
TypeSealing Fitting With Nipple
General Literature Asset 1 Display TextHazardous-rated seal-off fittings in expanded trade sizes and with improved design
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging0.8
SeriesEYD Series
BOX SIZE4.750x15.250x9.375 (in)
Carton - Number of Sub Packs4
Carton - SCC-14 Next Lower Level Sub Pack00783936090399
Master Pack DescriptionEach
