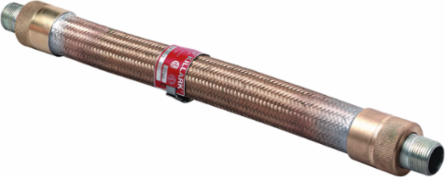

Killark ECF-215 Bronze Flexible Coupling 3/4 Inch with 15 Inch Bend Length, Hazardous Location
- MPN: ECF-215
- UPC: 783936105208
- PPN: HBL-ECF-215
- UNSPSC: 39131708
CAD
$1265.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
3/4" Flexible Coupling with 15" Bend Length, Bronze
Features
- Bronze flexible metal construction
- An inner liner of asphaltum impregnated jute fibre tubing to protect conductors
- Female ends with removable zinc plated steel nipples standard on all couplings
- Union type couplings may be assembled by adding a GUF Series union to the nipple
- Special lengths available-consult factory
- Bronze flexible metal construction. An inner liner of asphaltum impreg-nated jute fibre tubing to protect conductors. Female ends with zinc plated steel nipples standard on all couplings. Union type couplings may be assembled by adding a GUF Series union
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups A, B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Color
- Bronze
- Height
- 2.5 in
- Length
- 25 in
- Type
- Flexible Coupling
- Finish Type
- Natural
- Class Code
- D30
- Freight Class Code
- 05114009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- ECF Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Dimensions25 in x 2.25 in x 2.5 in
ApplicationFor use in hazardous areas where movement or vibration requires a flexible connection or a difficult bend is required in a conduit system.
FinishNatural
Hub Size3/4"
Special FeaturesBronze flexible metal construction. An inner liner of asphaltum impreg-nated jute fibre tubing to protect conductors. Female ends with zinc plated steel nipples standard on all couplings. Union type couplings may be assembled by adding a GUF Series union
Width2.25 in
ARRA CompliantContact Manufacturer
Description - InvoiceFLEX COUPLING 3/4"X15" BRONZE
Harmonization Code8307903000
Lead Time10 wk
Order Multiple1 EA
Sub Class CodeD30D239
Gross Weight with Packaging3.5
MaterialBronze
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936105208
NAICS Code3359323108
