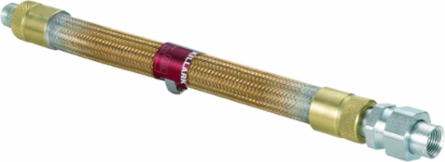

Killark ECFUF-236 3/4 Inch Flexible Coupling, Bronze, 36 Inch Bend Length
Killark ECFUF-236 3/4 Inch Flexible Coupling, Bronze, 36 Inch Bend Length
- MPN: ECFUF-236
- UPC: 783936105789
- PPN: HBL-ECFUF-236
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2101.80/ EA
Description
3/4" Flexible Coupling with 36" Bend Length, Bronze
Features
- Bronze flexible metal construction
- An inner liner of asphaltum impregnated jute fibre tubing to protect conductors
- Provided with one zinc plated steel nipple and one zinc plated steel female union
- Special lengths available – consult factory
- Bronze flexible metal construction. An inner liner of asphaltum impreg-nated jute fibre tubing to protect conductors. Provided with one zinc plated steel nipple and one zinc plated steel female union.
Specifications
Specifications
- Country of Origin
- US
- Each - Width
- 2.190 in
- Application
- For use in hazardous areas where movement or vibration requires a flexible connection or a difficult bend is required in a conduit system.
- Finish
- Natural
- Special Features
- Bronze flexible metal construction. An inner liner of asphaltum impreg-nated jute fibre tubing to protect conductors. Provided with one zinc plated steel nipple and one zinc plated steel female union.
- Finish Type
- Natural
- Class Code
- D30
- Freight Class Code
- 05114009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- No
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- ECFUF Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936105789
Width2.190 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups A, B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
ColorBronze
Hub Size3/4"
TypeFlexible Coupling With Female Union
ARRA CompliantContact Manufacturer
Description - InvoiceFLEX COUPLING 3/4"X36" W/UNION
Harmonization Code8307903000
Lead Time25 wk
Order Multiple1 EA
Sub Class CodeD30D239
Gross Weight with Packaging7
MaterialBronze
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
