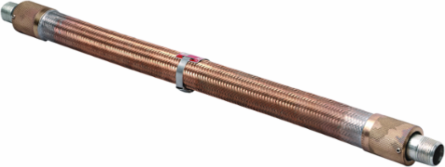

Killark EKJ-24 3/4 Inch Bronze Flexible Coupling with 4 Inch Bend Length, Hazardous Location
Killark EKJ-24 3/4 Inch Bronze Flexible Coupling with 4 Inch Bend Length, Hazardous Location
- MPN: EKJ-24
- UPC: 783936107462
- PPN: HBL-EKJ-24
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$847.72/ EA
Description
3/4" Flexible Coupling with 4" Bend Length, Bronze
Features
- Bronze flexible metal construction
- An inner liner of asphaltum impregnated jute fibre tubing to protect conductors
- Female ends with removable zinc plated steel nipples standard on all couplings
- Union type couplings may be assembled by adding a GUF Series union to the nipple
- Special lengths available-consult factory
- Furnished with a setscrew (for use as a fixture hanging coupling)
- Bronze flexible metal construction. An inner liner of asphaltum impreg-nated jute fibre tubing to protect conductors. Female ends with zinc plated steel nipples standard on all couplings. Union type couplings may be assembled by adding a GUF Series union
Specifications
Specifications
- Country of Origin
- US
- Each - Width
- 1.620 in
- Application
- For use in hazardous areas where movement or vibration requires a flexible connection or a difficult bend is required in a conduit system.
- Finish
- Natural
- Hub Size
- 3/4"
- Special Features
- Bronze flexible metal construction. An inner liner of asphaltum impreg-nated jute fibre tubing to protect conductors. Female ends with zinc plated steel nipples standard on all couplings. Union type couplings may be assembled by adding a GUF Series union
- Width
- 1.62 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- FLEX COUPLING 3/4"x4" BRONZE
- Harmonization Code
- 8307903000
- Lead Time
- 10 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D239
- Gross Weight with Packaging
- 2.5
- Material
- Bronze
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Dimensions8.75 in x 1.62 in x 1.62 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups A, B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
ColorBronze
Height1.62 in
Length8.75 in
TypeFlexible Coupling
Finish TypeNatural
Class CodeD30
Freight Class Code05114009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorNo
CSA File NumberLR11716
UL File NumberE10514
SeriesEKJ Series
Carton - SCC-14 Next Lower Level Sub Pack00783936107462
Certifications
- EU RoHS Indicator
- Contact Manufacturer
