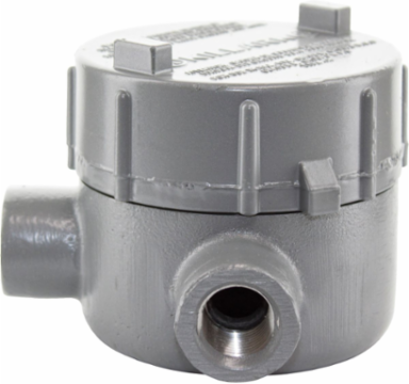

Killark GECLT-2 ¾ Inch GEC Outlet Body L-Type, Aluminum, Hazardous Location Rated
Killark GECLT-2 ¾ Inch GEC Outlet Body L-Type, Aluminum, Hazardous Location Rated
- MPN: GECLT-2
- UPC: 783936210094
- PPN: HBL-GECLT-2
- UNSPSC: 39121314
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$114.51/ EA
Description
¾" GEC Outlet Body L-Type
Features
- Water shedding cover – suitable for wet locations when mounted in upright position.
- External cover threads on body protecting conductors from damage during pulling.
- No pinching of conductors during cover installation.
- Taper threaded hubs to provide ground continuity.
- Smooth integral hub bushing to protect conductor insulation when pulling.
- Internally threaded cover openings for additional wiring room.
- Covers furnished with boxes.
- Weather-resistant finish.
- Green ground screw standard.
- GE conduit outlet boxes have: GEC Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal
Specifications
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Specifications
- Size
- 6.25 in x 6 in x 4.25 in
- ARRA Compliant
- Contact Manufacturer
- Country of Origin
- US
- Each - Width
- 6.000 in
- Height
- 4.25 in
- Length
- 6.25 in
- Application
- Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
- Type
- Outlet Body With Cover
- Description - Invoice
- OUTLET BODY 3/4" AL L TYPE
- Harmonization Code
- 7609000299
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 1.84
- UL File Number
- E10514
- Series
- GE Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936210094
Special FeaturesGE conduit outlet boxes have: GEC Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal
ColorGray
Dimensions6.25 in x 6 in x 4.25 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA
Hub Size3/4"
Width6 in
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
Hub PatternL
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Master Pack DescriptionEach
