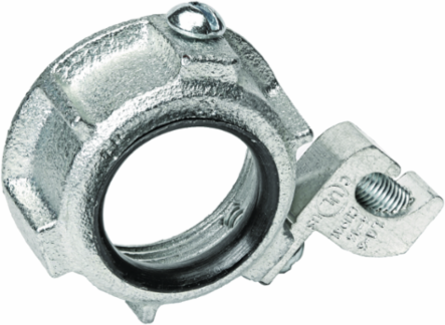

Killark BUIG2 3/4 Inch Iron Insulated Ground Bushing, 150°C Rated with Malleable Construction
- MPN: BUIG2
- UPC: 783936110714
- PPN: HBL-BUIG2
- UNSPSC: 39121331
CAD
$34.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
3/4" Iron Insulated Ground Bushing
Features
- Lay-in lug style provides an easy means of inserting ground wire
- Dual rated aluminum grounding lugs may be used with copper or aluminum grounding conductors
- Insuliner temperature rated at 150°C
- Malleable construction insures mechanical protection for the raceway
- Zinc electro plated for corrosion protection
- Lay-in lug style provides an easy means of inserting a ground wire. Dual-rated aluminum grounding lugs may be used with copper or aluminum grounding conductors. Insuliner temperature rated at 150ºC. Malleable iron construction ensures mechanical protection for the raceway. Zinc electro-plated for corrosion protection.
Specifications
Key Specifications
- Country of Origin
- India
- Height
- 0.75 in
- Length
- 1.3 in
- Color
- Gray
- Special Features
- Lay-in lug style provides an easy means of inserting a ground wire. Dual-rated aluminum grounding lugs may be used with copper or aluminum grounding conductors. Insuliner temperature rated at 150ºC. Malleable iron construction ensures mechanical protection for the raceway. Zinc electro-plated for corrosion protection.
- Weight
- 0.1 lb.
- Finish Type
- Natural
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 0.1
- Series
- BUIG Series
- BOX SIZE
- 6.000x8.000x6.000 (in)
- Carton - Number of Sub Packs
- 50
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936110714
- Master Pack Description
- Each
Dimensions1.3 in x 0.6 in x 0.75 in
Hub Size3/4"
ApplicationFor use on threaded rigid/IMC conduit to provide a means of grounding conduit through an insulated bushing.
Size1.3 in x 0.6 in x 0.75 in
TypeInsulated Grounding Bushing
Width0.6 in
ARRA CompliantContact Manufacturer
Description - Invoice3/4 GRND BSHG INSUL 150 C 4 TO 14 AL LUG
Harmonization Code8547900030
Lead Time21 wk
Order Multiple1 EA
Sub Class CodeD30D236
MaterialZinc
Base Unit of MeasureEA
Carton - Gross Weight per Pack5.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units50 EA
NAICS Code3359323109
Certifications
- EU RoHS Indicator
- Contact Manufacturer
