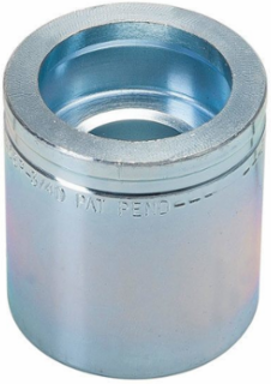

Greenlee 745SP-3/4D SPEED PUNCH Knockout Punch 3/4 Inch Diameter, Carbon-Alloy Steel, 0.65 lbs.
- MPN: 745SP-3/4D
- UPC: 783310016656
- PPN: GRN-745SP-3/4D
- UNSPSC: 27111505
CAD
$93.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SPEED PUNCH Knockout Punch 3/4 Inch Diameter, Carbon-Alloy Steel, 0.65 lbs.
Features
- SPEED PUNCH® saves time and money with every hole.Up to 3X's faster setup and disassembly.No-Thread punch design eliminates cross-threading.
- Available for - Stainless Steel - 1/2" to 2" conduit sizeMild Steel - 1/2" to 4" conduit sizeMetric ISO-16 to ISO-6322mm & 30mm for Oil tight push buttons.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Shape | Round |
| Capacity Stainless Steel | Max - 10 gauge (3.0 mm). |
| Draw Stud | Std. Draw Stud - 7212SP23 (3/4'' X 5.00''). |
| Driver | Use with Greenlee Punch Drivers - 746 Hydraulic Ram & 767 Pump (or LS50L - Battery-Powered Driver up to max. 12 ga. stainless steel). |
| Minimum Pilot Hole | 7/8'' (22.2 mm) |
| Sub Brand | SPEED PUNCH® |
| Weight | 0.65 lbs. (0.30 kg) |
|---|---|
| Capacity Mild Steel | Max - 10 gauge (3.0 mm). |
| Diameter | Actual hole size - 1.115'' (28.3 MM) |
| Draw Studs | Alt. Draw Stud (Long) - 7212SP21 (3/4'' x 5.83'') - For use with 746 Hydraulic Ram. |
| Material | Carbon-Alloy Steel, Zinc Plated |
| Operation | Must be used with other SPEED PUNCH® System components. |
| Type | Knockout Punches |
