Killark FXB075SPCR Spacer 3/4 Inch Thick for FXB Series Back Boxes, Gray, Aluminum
- MPN: FXB075SPCR
- UPC: 783936081236
- PPN: HBL-FXB075SPCR
CAD
$678.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
3/4" Thick Spacer For FXB Series Back Boxes
Features

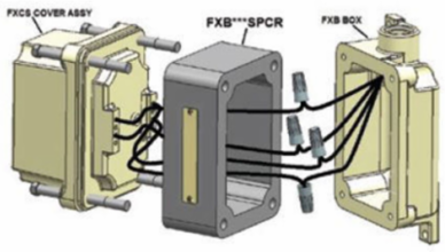

- Used to increase wire room in conjunction with FXCS Cover Assemblies and FXB Back Box.
- When using FXB spacers, application of hazardous area derates control station to Class I Div. 1 & 2, Class II, III Grps. C,D,E,F,G hazardous locations only.
- Killark FXB SPACERS are used to increase the room for wiring in conjunction with an FXCS Cover Assembly mounted to an FXB back box.
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Depth | 3/4 in |
| Weight | 0.70 lb. |
| Nema Rating | 3 |
| Class Code | D25 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| Sub Class Code | D25D250 |
| CSA File Number | LR11714, 2493125 |
| Series | FXB Series |
| BOX SIZE | (in) |
| NAICS Code | 3359326103 |
| Color | Gray |
|---|---|
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Application | The FXB Spacers are used with FXB Back Boxes and FXCS/FXS Cover Assemblies to increase wire room. Assembly is de-rated to Class 1, Division 2 |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | SPACER, 3/4" THICK for FXB |
| Harmonization Code | 7616995190 |
| MSDS Flag | No |
| Buy America(n) Qualified | Contact Manufacturer |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936081236 |
