Killark EKJ-215 Bronze Flexible Coupling 3/4 Inch x 15 Inch, Hazardous Location Rated
- MPN: EKJ-215
- UPC: 783936107653
- PPN: HBL-EKJ-215
- UNSPSC: 39131708
CAD
$1437.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

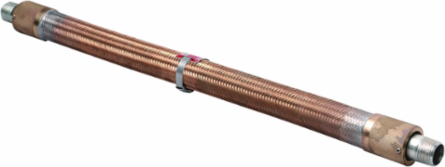

3/4" x 15" Flexible Coupling, Bronze
Features
- Bronze flexible metal construction
- An inner liner of asphaltum impregnated jute fibre tubing to protect conductors
- Female ends with removable zinc plated steel nipples standard on all couplings
- Union type couplings may be assembled by adding a GUF Series union to the nipple
- Special lengths available-consult factory
- Furnished with a setscrew (for use as a fixture hanging coupling)
- Bronze flexible metal construction. An inner liner of asphaltum impreg-nated jute fibre tubing to protect conductors. Female ends with zinc plated steel nipples standard on all couplings. Union type couplings may be assembled by adding a GUF Series union
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups A, B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Color
- Bronze
- Hub Size
- 3/4"
- Type
- Flexible Coupling
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- FLEX COUPLING 3/4"x15" BRONZE
- Harmonization Code
- 8307903000
- Lead Time
- 20 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D239
- Gross Weight with Packaging
- 4.1
- Material
- Bronze
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936107653
- NAICS Code
- 3359323114
Width2.190 in
ApplicationFor use in hazardous areas where movement or vibration requires a flexible connection or a difficult bend is required in a conduit system.
FinishNatural
Special FeaturesBronze flexible metal construction. An inner liner of asphaltum impreg-nated jute fibre tubing to protect conductors. Female ends with zinc plated steel nipples standard on all couplings. Union type couplings may be assembled by adding a GUF Series union
Finish TypeNatural
Class CodeD30
Freight Class Code05114009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorNo
CSA File NumberLR11716
UL File NumberE10514
SeriesEKJ Series
BOX SIZE(in)
Master Pack DescriptionEach
