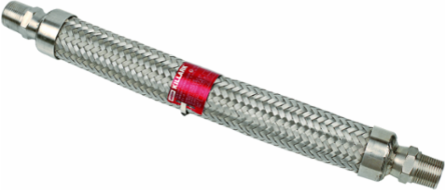

Killark EKJ-227SS-EX 3/4 Inch x 27 Inch Stainless Steel Flexible Coupling, Quad Listed
Killark EKJ-227SS-EX 3/4 Inch x 27 Inch Stainless Steel Flexible Coupling, Quad Listed
- MPN: EKJ-227SS-EX
- UPC: 783936073477
- PPN: HBL-EKJ-227SS-EX
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4478.95/ EA
Description
3/4" x 27" Flexible Coupling, Stainless Steel, Quad Listed
Features
- Stainless Steel flexible metal construction
- NPT male fitting (316SS) welded to each end
- Outer Braid (304SS) with inner flex hose of 321SS
- Inner liner of silicone coated fabric
- Certified QUAD listed
- Stainless steel wirebraid construction. Annular corrugated seamless hose. Cast in ribs for easy installation. Furnished with two zinc plated steel nipples.
Specifications
Specifications
- Country of Origin
- US
- Each - Width
- 1.690 in
- Application
- For use in hazardous areas where movement or vibration requires a flexible connection or a difficult bend is required in a conduit system.
- Finish
- Natural
- Hub Size
- 3/4"
- Special Features
- Stainless steel wirebraid construction. Annular corrugated seamless hose. Cast in ribs for easy installation. Furnished with two zinc plated steel nipples.
- Width
- 1.69 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- FLEX COUPLING 3/4" X 27" SS QUAD LISTED
- Harmonization Code
- 8307103000
- Lead Time
- 30 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D239
- Material
- Stainless Steel
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Dimensions31.5 in x 1.69 in x 1.69 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups A, B, C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
ColorSilver
Height1.69 in
Length31.5 in
TypeFlexible Coupling
Finish TypeNatural
Class CodeD30
Freight Class Code05114009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging6.81
SeriesEKJ Series
Carton - SCC-14 Next Lower Level Sub Pack00783936073477
Certifications
- EU RoHS Indicator
- Contact Manufacturer
