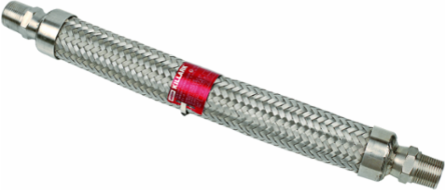

Killark EKJ-27SS-EX 3/4 Inch x 7 Inch Flexible Coupling, Stainless Steel, Quad Listed
Killark EKJ-27SS-EX 3/4 Inch x 7 Inch Flexible Coupling, Stainless Steel, Quad Listed
- MPN: EKJ-27SS-EX
- UPC: 783936073422
- PPN: HBL-EKJ-27SS-EX
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3060.26/ EA
Description
3/4" x 7" Flexible Coupling, Stainless Steel, Quad Listed
Features
- Stainless Steel flexible metal construction
- NPT male fitting (316SS) welded to each end
- Outer Braid (304SS) with inner flex hose of 321SS
- Inner liner of silicone coated fabric
- Certified QUAD listed
- Stainless steel wirebraid construction. Annular corrugated seamless hose. Cast in ribs for easy installation. Furnished with two zinc plated steel nipples.
Specifications
Specifications
- Country of Origin
- US
- Each - Width
- 1.690 in
- Application
- For use in hazardous areas where movement or vibration requires a flexible connection or a difficult bend is required in a conduit system.
- Finish
- Natural
- Hub Size
- 3/4"
- Special Features
- Stainless steel wirebraid construction. Annular corrugated seamless hose. Cast in ribs for easy installation. Furnished with two zinc plated steel nipples.
- Width
- 1.69 in
- Finish Type
- Natural
- Class Code
- D30
- Freight Class Code
- 05114009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 2.67
- Series
- EKJ Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936073422
Dimensions11.5 in x 1.69 in x 1.69 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups A, B, C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
ColorSilver
Height1.69 in
Length11.5 in
TypeFlexible Coupling
Weight2.67 lb.
ARRA CompliantContact Manufacturer
Description - InvoiceFLEX COUPLING 3/4" X 7" SS QUAD LISTED
Harmonization Code8307103000
Lead Time30 wk
Order Multiple1 EA
Sub Class CodeD30D239
MaterialStainless Steel
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
