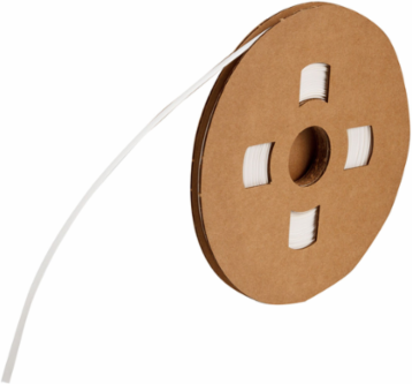

Brady HX-C-125-WT PermaSleeve Heat Shrink Tubing, 0.125 Inch Dia x 100 ft L, White, 2:1 Shrink Ratio
Brady HX-C-125-WT PermaSleeve Heat Shrink Tubing, 0.125 Inch Dia x 100 ft L, White, 2:1 Shrink Ratio
- MPN: HX-C-125-WT
- UPC: 662820997375
- PPN: BRD-HX-C-125-WT
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$217.16/ EA
Description
Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.
Features
- Supplied roll form in a flattened format on a carrier designed for use with computer driven printers
- Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002
- Tested per ASTM E162 and ASTM E662
- Operating temperature of -40°F to 248°F (-40°C to 120°C)
Specifications
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
Specifications
- Applications
- Wire and Cable Labeling
- Color
- White
- Finish
- Matte
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility (Print)
- BBP72
- Ribbon Series
- R6600
- Shrink Ratio
- 2:1
- Total Qty per Pack
- 1 Roll(s) / Roll
- Adhesive (Y/N)
- No
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Heat-shrinkable
- SAP B-Number
- B-7642
- Diameter as Supplied (mm/cm/m)
- 3.2 mm
- Dimensions (Metric)
- 6.00 mm W x 6 mm H x 30.48 m L
- Height (in/ft/yd)
- 0.235 in
- Maximum Service Temperature °C
- 120 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.11 in
- Maximum Wire Gauge
- 16 AWG
- Minimum Service Temperature °F
- -40 °F
- Minimum Wire Diameter (mm/cm/m)
- 1.57 mm
- Recovered Diameter (in/ft/yd)
- 0.062 in
- Recovered Wall Thickness (in/ft/yd)
- 0.02 in
- Roll Length (in/ft/yd)
- 100 ft
- Size - Length (m)
- 30.48 m
- Sleeve Size (in/ft/yd)
- 0.125 in Dia x 100 ft L
- Wire Diameter Range
- 0.062 in to 0.11 in
Brand NameBrady®
Enables Industry Compliance2005/618/EC MCV; Method 215K; MIL-DTL-23053/5 Class 1; MIL-STD-202; RoHS Compliant; UL 224, VW-1
For Use with PrinterBBP®72 Label Printer; BradyPrinter i7100; THT 3" Core Printer
Primary Noun, Basic FunctionHeat Shrink Tubing
Printable SidesSingle-Side Printable
Printer CompatibilityBBP72
Recommended RibbonR6406
ShapeContinuous
Suggested Ribbon SeriesR4300; R6000 Halogen Free; R6600
Trade NamePermaSleeve®
Brady Material NumberB-7642
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-Resistant; Self-Extinguishing; Smear-Resistant
Diameter as Supplied (in/ft/yd)0.125 in
Dimensions0.235 in H
Dimensions 20.235 in H
Height (mm/cm/m)6 mm
Maximum Service Temperature °F248 °F
Maximum Wire Diameter (mm/cm/m)2.79 mm
Minimum Service Temperature °C-40 °C
Minimum Wire Diameter (in/ft/yd)0.062 in
Minimum Wire Gauge20 AWG
Recovered Diameter (mm/cm/m)1.6 mm
Recovered Wall Thickness (mm/cm/m)0.51 mm
Roll Length (mm/cm/m)30.48 m
Size - Width (mm)6.00 mm
Sleeve Size (mm/cm/m)3.2 mm Dia x 30.48 m L
Wire Gauge Range20 AWG to 16 AWG
