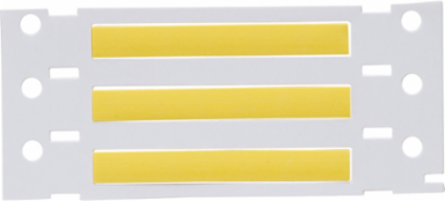

Brady 2LSZH-125-2-YL-S Low Smoke Zero Halogen Double Sided Heat Shrink Tubing, 0.125 Inch Dia x 2 Inch W, Yellow

MPN: 2LSZH-125-2-YL-S
UPC: 754473942397
PPN: BRD-2LSZH-125-2-YL-S
UNSPSC: 39131502

$538.99

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

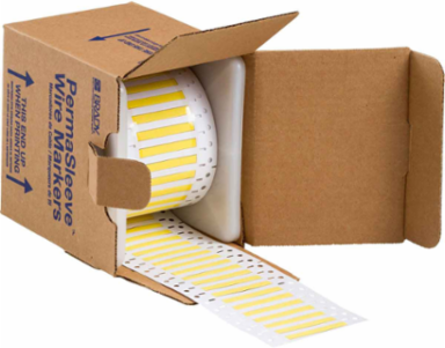

The B-7641 Heat Shrink Sleeve from Brady® is a low smoke, halogen free identification material used for wire and cable identification.

Features

Made of halogen-free, flexible flame-retardant, heat-shrinkable polyolefin tubing, offering fire safety properties and minimal smoke emission
Compatible with the most stringent requirements in the market today to enhance fire safety needs
2:1 heat-shrink ratio
Use with thermal transfer printers and Brady's R6000 series halogen-free ribbon

Documentation & Downloads

Specifications

Key Specifications

Applications	Electrical Labeling; Wire and Cable Labeling
Color	Yellow
Finish	Matte
Label/Media Format	Roll
Primary Noun, Basic Function	Sleeve
Printable Sides	Double-Side Printable
Printer Compatibility	BBP12; BBP11; BBP72; PR200Plus; PR300Plus; PR600Plus; i7100
Quantity per Roll	500
Recommended Ribbon	IP-R6007; R6007
Shape	Rectangle
Sleeve Slits	No
Suggested Ribbon Series	R6000 Halogen Free; R6600
Total Quantity	500
Adhesive (Y/N)	No
Label Properties	Heat Shrink Sleeves
Material Properties	Flame-retardant; Heat-shrinkable; Low-smoke; Zero-halogen
SAP B-Number	B-7641
Diameter as Supplied (in/ft/yd)	0.125 in
Dimensions	0.235 in H
Dimensions 2	0.235 in H
Height (mm/cm/m)	6.00 mm
Maximum Service Temperature °F	221 °F
Maximum Wire Diameter (mm/cm/m)	2.79 mm
Minimum Service Temperature °C	-55 °C
Minimum Wire Diameter (in/ft/yd)	0.062 in
Minimum Wire Gauge	20 AWG
Recovered Diameter (mm/cm/m)	1.6 mm
Recovered Wall Thickness (mm/cm/m)	0.64 mm
Roll Width (mm/cm/m)	50.8 mm
Sleeve Size (in/ft/yd)	0.125 in Dia x 2 in W
Sleeve Width (in/ft/yd)	2 in
Vertical Repeat	0.5 in
Web Width (in/ft/yd)	3.49 in
Wire Diameter Range	0.062 in to 0.11 in

Brand Name	Brady®
Enables Industry Compliance	ASTM D 257; ASTM D 2671; ASTM D 2671C; ASTM D 570; ASTM D 635; ASTM D 638; ASTM D 792; BS6853 (1999) Vehicle Category 1a; European Standard EN 45545-2, Requirement Set R22/R23, Vehicle Category HL3; Halogen Free (DIN VDE 0472 Part 815); MIL-M-81531; MIL-STD-202; MIL-STD-202G; SAE-AS-81531
For Use with Printer	BBP®72 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Markers per Roll	500
Print Technology	Thermal Transfer
Printer and Label Applications	Wire & Cable
Printer Compatibility (Print)	BBP12; BBP72; i7100
Quantity per Row	1
Ribbon Series	R6600
Shrink Ratio	2:1
Software Compatibility	LabelMark, CodeSoft
Total Qty per Pack	500 Sleeve(s) / Roll
Trade Name	PermaSleeve®
Brady Material Number	B-7641
Material	Heat-shrink Polyolefin
Resistance Properties	Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
Core Diameter (mm/cm/m)	76.20 mm
Diameter as Supplied (mm/cm/m)	3.2 mm
Dimensions (Metric)	50.80 mm W x 6.00 mm H
Height (in/ft/yd)	0.235 in
Maximum Service Temperature °C	105 °C
Maximum Wire Diameter (in/ft/yd)	0.11 in
Maximum Wire Gauge	16 AWG
Minimum Service Temperature °F	-67 °F
Minimum Wire Diameter (mm/cm/m)	1.57 mm
Recovered Diameter (in/ft/yd)	0.062 in
Recovered Wall Thickness (in/ft/yd)	0.025 in
Roll Width (in/ft/yd)	2 in
Size - Width (mm)	50.80 mm
Sleeve Size (mm/cm/m)	3.2 mm Dia x 50.8 mm W
Sleeve Width (mm/cm/m)	50.8 mm
Vertical Repeat (mm)	12.70 mm
Web Width (mm/cm/m)	88.65 mm
Wire Gauge Range	20 AWG to 16 AWG

Regulatory Information

Contains CA PROP 65 Substance	No - Does not contain
Contains Heavy Metal(s)	No - Does not contain
EU RoHS Compliance	Pass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet required	No = MSDS/SDS is not required
