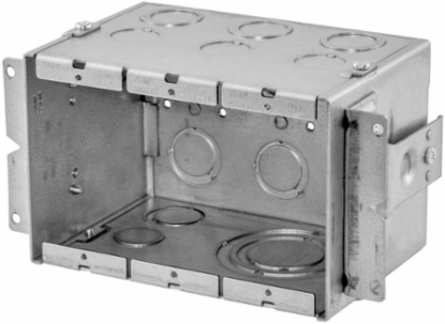

Raco 986 3-Gang Gangable Wallbox, 4 Inch Deep, Steel, 2 Inch Knockouts

3-Gang Gangable Wallbox, 4 Inch Deep, Steel, 2 Inch Knockouts
  • MPN: 986
  • UPC: 050169009864
  • PPN: HBL-986
  • UNSPSC: 39121309

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$51.95/ EA

Description

3-Gang Wallbox, Gangable, 4-inch Deep, 2-inch Knockouts

Features

  • Knockouts from 1/2" up to 2
  • 4" depth accepts any device
  • Concentric 1/2" - 3/4" knockouts for pre-connectorized AV cables
  • Eccentric 1/2" - 3/4" knockouts
  • Raised ground provision in each gang
  • Accepts low voltage partition
  • NEMA spaced device mounting, accepts industry standard wallplates
  • Adjustable stud mounting brackets built in to accommodate different stud and sheetrock thickness
  • Adjustable far side support
  • Suitable for masonry application

Specifications

Specifications

Country of Origin
China
Depth
4 in
Cubic Capacity
79 cu.in
Standard
cULus Listed
Width
7.374 in
Class Code
A36
Freight Class Code
06202000
Image Actual Or Representative
A
Drawn or Welded
Welded
Material
Steel
Base Unit of Measure
EA
Carton - Gross Weight per Pack
13.704 lb.
Carton - Pack Description
Carton
Carton - Total Units
6 EA
Pallet - Total Units
336 EA
Pallet Length
43.375 in
Pallet Width
43.375 in
Actual Depth4.165 in
Description - SlangGangable Wallbox
Height4.205 in
TypeLarge Capacity
Weight2.166 lb.
Description - Invoice3G WALLBOX, GANGABLE, 4INCH DEEP, 2IN KO
Harmonization Code7326908688
Sub Class CodeA36A330
Wiring SystemConduit
Number of Gang(s)3-Gang
BOX SIZE4.625x22.750x8.875 (in)
Carton - Number of Sub Packs6
Carton - SCC-14 Next Lower Level Sub Pack00050169009864
Pallet - GTIN - Package70050169009863
Pallet Height37.875 in
Pallet Weight812.424 lb.

Certifications

Certified Listed
cULus Listed
