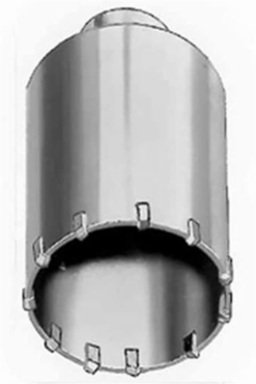

Milwaukee Tool 48-20-5045 SDS-Plus 3 Inch Carbide Tipped Core Bit, Drilling Depth 3 Inch
Milwaukee Tool 48-20-5045 SDS-Plus 3 Inch Carbide Tipped Core Bit, Drilling Depth 3 Inch
- MPN: 48-20-5045
- UPC: 045242105403
- PPN: MIL-48-20-5045
- UNSPSC: 20121607
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$138.03/ EA
Description
Milwaukee's core bits are ideal for large hole drilling where depth is relatively shallow. The core bit cuts a Kerf only. The usable depth of thick wall core bits is 4-3/8 in. The inside core must be removed by the operator before deeper drilling can be accomplished. The thick wall construction is ideal for larger hammers and more seasoned/cured concrete. A 7-1/2 in. extension is available to allow for the deeper holes to be drilled. The appropriate (Dependant on the diameter) SDS Plus drive shank must be used to drive the core bit. Use 48-20-6155 center pin and 48-20-6159 guide plate for positioning and starting the hole. Thin wall core bits are available from 1 in. to 6 in. diameters. See thick wall core bits for cured concrete and/or larger hammers.
Features
- 3" Diameter
- Includes Core Body with Guide Plate & Centering Pin
- Thin Wall Design
- Usable Cuting Depth 2-13/16"
- Use With 7-1/2" Extension 48-95-6075
- Use with 8" or 12" SDS Plus Adapter Shanks (48-03-3555, 48-03-3561)
- Use With Guide Plate 48-20-6159 and Centering Pin 48-20-6155
Specifications
Specifications
- Bit Diameter
- #3
- Depth
- 3.5 Inches
- Material
- High Speed Steel
- Country of Origin
- Japan
Bit TypeGeneral Purpose
Drilling Depth3 in
Shank Diameter3/4 in
