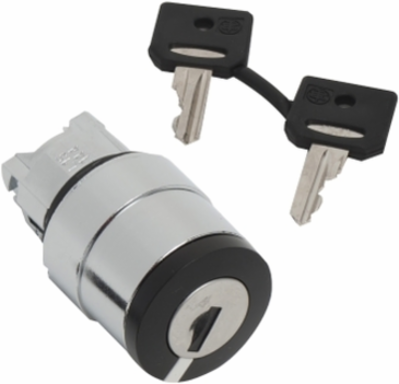

Schneider Electric ZB4BG010 3-POSITION SS HEAD, STAY PUT RONIS 458A
- MPN: ZB4BG010
- PPN: SCH-ZB4BG010
CAD
$94.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
3-POSITION SS HEAD, STAY PUT RONIS 458A
Features
- Constructed with a heavy-duty, chromium-plated metal bezel and fixing collar, this 22mm ZB4 commander head is built for maximum physical durability. It resists aggressive industrial solvents, chemical washdowns, and mechanical impacts, outlasting plastic alternatives in punishing environments like automotive assembly lines, wastewater plants, and heavy manufacturing facilities.
- As part of the highly modular Schneider Electric Harmony XB4 family, this key-operated head snaps cleanly into standard 22mm panel cutouts and interfaces seamlessly with ZB4BZ fixing collars and electrical contact blocks (ZBE series). The clever, anti-vibration plug-and-play assembly slashes installation times for panel builders and allows maintenance electricians to swap out contact elements in seconds without disturbing the front-panel hardware.
- Engineered as a "stay-put" operator with a 3-position (±45°) throw, this selector switch physically locks into your chosen configuration. It provides clear, distinct tactile feedback and mechanical stability for multi-stage processes—such as Hand-Off-Auto (HOA) overrides or multi-speed pump control systems—ensuring equipment never accidentally drops out or changes states due to system vibration.
- Built with a versatile Ronis 458A lock mechanism, this switch body permits total key extraction from the left, center, or right positions. This allows plant maintenance teams and facility technicians to lock down a machine in its operational, isolated, or automatic mode, preventing unauthorized override adjustments and streamlining workplace safety management protocols.
Documentation & Downloads
Specifications
Additional
- Mounting Diameter
- 22 mm
- Mechanical Durability
- 1,000,000 cycles
- IP Degree of Protection
- IP66, IP67, IP69, IP69K
- Vibration Resistance
- 5 gn (2 to 500 Hz) IEC 60068-2-6
- Ambient Air Temperature for Operation
- -40 to 70 °C
- Overall Dimensions
- 29 mm W x 29 mm H x 72 mm D
- Material
- Chromium plated metal bezel
- Type of Operator
- Stay put
- Key Withdrawal Position
- In any position
- Standards
- EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GB 14048.5, CSA C22.2 No 14, UL 508
- Protective Treatment
- TH
- Range of Product
- Harmony XB4
- Shape of Signaling Unit Head
- Round
Operator Position Information3 positions ±45°
Resistance to High Pressure Washer7,000,000 Pa at 55 °C, distance 0.1 m
Overvoltage CategoryClass I conforming to IEC 60536
Shock Resistance30 gn (18 ms), 50 gn (11 ms) IEC 60068-2-27
Ambient Air Temperature for Storage-40 to 70 °C
Product Weight0.098 kg
Operator ProfileBlack key switch
Type of KeylockKey 458A
Product CertificationsCSA, DNV, BV, LROS, UL listed
Enclosure TypeUL type 4X/13
Product or Component TypeHead for key selector switch
Head TypeStandard
