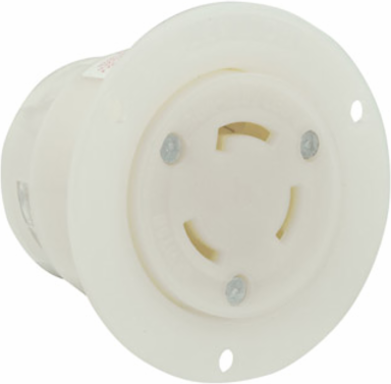

Leviton 3335-C 30 Amp Flanged Locking Receptacle, 125/250 Volt, Industrial Grade
- MPN: 3335-C
- UPC: 078477818329
- PPN: LEV-3335-C
CAD
$115.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

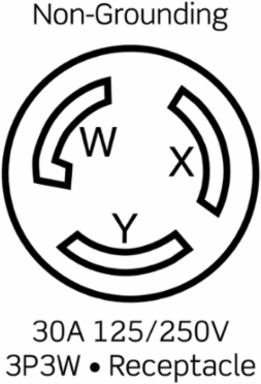

30 Amp, 125/250 Volt, NEMA Non-NEMA, 3P, 3W, Flanged Outlet Locking Receptacle, Industrial Grade, Non-Grounding - WHITE
Features
- One piece contacts reduce friction and overheating
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Ratings and NEMA I.D. permanently marked on device
- Industry exclusive limited lifetime warranty
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL498
- File E13399
CSA C22.2 No. 42File LR-406
NOM057
WarrantyLimited Lifetime Warranty Warranty
Material Specifications
- Body Material
- Nylon
- Face Material
- Nylon
- Line Contacts
- Brass .035 Thick
- Terminal Screws
- Brass 10-32
ColorWhite
Grounding ScrewBrass 8-32
Strap MaterialThermoplastic Nylon
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal Accom.
- 18-10 AWG
- Termination
- Back
Screw Terminal Torque10-14 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Product Features
- Brand
- Black and White
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-2 per UL 94
Electrical Specifications
- Amperage
- 30 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 3
- Voltage
- 125/250 VAC
Current LimitingFull Rated Current
GroundingNon-Grounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
