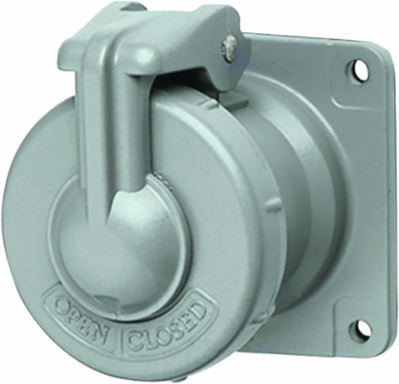

Killark VR3022 30A 2 Pole 2 Wire Receptacle Assembly, 600 VAC, 3.25 Inch Length, Type I
- MPN: VR3022
- UPC: 783936078694
- PPN: HBL-VR3022
CAD
$598.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
30A 2 Pole 2 Wire Receptacle Assembly - AT Type
Features
- Patented “Breech-Lock” cap serves as both flip lid and screw cover.
- Patented notch in cap arm holds cap open for easy plug insertion or maintenance.
- Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.
- Patented pin design uses slotted spring clip which avoids excessive wear while providing continuous electrical pin to sleeve contact.
- “Increased Safety” type box terminals with gripper ribs securely clamp around conductors.
- Boxes come with a green grounding screw.
- VersaMate® metallic pin & sleeve plugs, receptacles, and in-line connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and similar apparatus. Suitable for indoor and outodoor use, as well as applications that include wet, cold, hosedown, hazardous and corrosive environments. Configurations are also available in reverse-service and polarized orientations.
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 3.89 in
- Voltage Rating
- 600 VAC;250 VDC
- Amperage Rating
- 30 A
- Frequency Rating
- 50-400 Hz
- Style
- Style I
- Class Code
- D35
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- D35D260
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936078694
Dimensions3.25 in x 3.41 in x 3.89 in
Length3.25 in
Width3.41 in
ApplicationSuitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Refineries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities
Number Of Wires2
ARRA CompliantContact Manufacturer
Description - Invoice30A 2W2P RECEPT ASSY. AT
Harmonization Code8536694020
MSDS FlagNo
MaterialBody-Copper-free aluminum; Contacts-Brass; Spring tensioner-Patented beryllium copper; External screws-316 stainless steel
BOX SIZE(in)
NAICS Code335931A104
