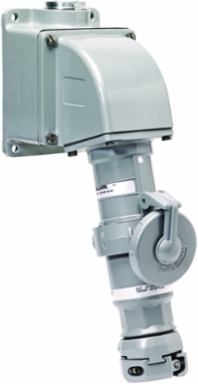

Killark VR321E1-S39 30A 2 Pole 2 Wire Receptacle with E Type Box 1/2 Inch, Indoor/Outdoor Use
Killark VR321E1-S39 30A 2 Pole 2 Wire Receptacle with E Type Box 1/2 Inch, Indoor/Outdoor Use
- MPN: VR321E1-S39
- UPC: 783936063942
- PPN: HBL-VR321E1-S39
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$843.65/ EA
Description
30A 2 Pole 2 Wire Receptacle with E Type Box 1/2" - Reverse Service
Features
- Patented “Breech-Lock” cap serves as both flip lid and screw cover.
- Patented notch in cap arm holds cap open for easy plug insertion or maintenance.
- Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.
- Patented pin design uses slotted spring clip which avoids excessive wear while providing continuous electrical pin to sleeve contact.
- “Increased Safety” type box terminals with gripper ribs securely clamp around conductors.
- Boxes come with a green grounding screw.
- VersaMate® metallic pin & sleeve plugs, receptacles, and in-line connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and similar apparatus. Suitable for indoor and outodoor use, as well as applications that include wet, cold, hosedown, hazardous and corrosive environments. Configurations are also available in reverse-service and polarized orientations.
Specifications
Specifications
- Country of Origin
- United States
- Dimensions
- 3.69 in x 4.25 in x 4.87 in
- Length
- 3.69 in
- Width
- 4.25 in
- Application
- Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Refineries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities
- Frequency Rating
- 50-400 Hz
- Style
- Style I
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- VERSAMATE RECEPT REVRS SERVICE
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material
- Body-Copper-free aluminum; Contacts-Brass; Spring tensioner-Patented beryllium copper; External screws-316 stainless steel
- Base Unit of Measure
- EA
Back Box TypeDEAD END
Height4.87 in
Voltage Rating600 VAC;250 VDC
Amperage Rating30 A
Finish TypeBaked Powder Epoxy/Polyester Finish
Number Of Wires2
TypePin & Sleeve
Class CodeD35
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeD35D260
SeriesVersaMate Series
Carton - SCC-14 Next Lower Level Sub Pack00783936063942
Certifications
- EU RoHS Indicator
- Contact Manufacturer
