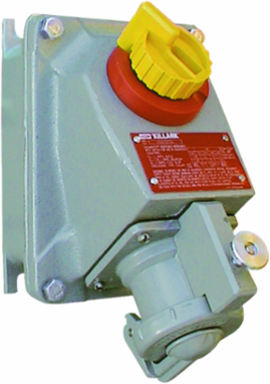

Killark VSQ3034 30A 3-Pole 4-Wire Hazardous Interlocked Receptacle, Aluminum, NEMA 4X, 10.750 Inch Width
Killark VSQ3034 30A 3-Pole 4-Wire Hazardous Interlocked Receptacle, Aluminum, NEMA 4X, 10.750 Inch Width
- MPN: VSQ3034
- UPC: 783936833323
- PPN: HBL-VSQ3034
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3025.20/ EA
Description
30A 3W4P VSQ Hazardous Interlocked Receptacle
Features
- Compact size and footprint
- Plug Interlock Mechanism for Dead-Front construction. Switch cannot be turned “ON” without fully inserted plug. Plug cannot be removed with switch in “ON” position
- Factory Wired Receptacle (Load Side) “Off” position is padlockable for maintenance safety
- Auxiliary Contact (late-make early-break) contact rated 10 Amp, 1/3 HP at 125/250 VAC.
- Adjustable mounting lugs
- Feed-through construction
- Horsepower-rated internal switch
- Killark VersaMate® VSQ Series of Switched and Interlocked receptacles provides for a receptacle solution in hazardous location areas. NEMA 4X weather-ingress ratings allow for indoor and outdoor use, and copper-free aluminum construction with electrostatically applied polyester/epoxy coating ensure the ultimate in corrosive resistance. Plug Interlock Mechanism for Dead-Front construction, ensuring that the switch cannot be turned on without a fully inserted plug (plug cannot be removed with switch in “ON”position, preventing possibly damaging arcs and sparks).
Specifications
Specifications
- ARRA Compliant
- Contact Manufacturer
- Country of Origin
- US
- Each - Width
- 10.750 in
- Hub Size
- 1"
- Weight
- 13.31 lb.
- Nema Rating
- 3, 4, 4X, 7(B, C, D), 9(F, G)
- Number Of Wires
- 4
- Type
- Pin & Sleeve
- Description - Invoice
- 30A 3W4P HZD INTRLCK RECEPT
- Harmonization Code
- 8537109999
- MSDS Flag
- No
- Hub Pattern
- Feed-Thru
- Receptacle Type
- Mechanically Interlocked
- Base Unit of Measure
- EA
ColorBattleship Gray
Width10.750 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups F, G;Class III, Divisions 1 & 2
Voltage RatingUp to 600 V
Amperage Rating30 A
Number Of Poles3
Style3 Pole, 4-Wire
Class CodeD35
Freight Class Code06316009
Image Actual Or RepresentativeR
Sub Class CodeD35D260
MaterialAluminum
SeriesVSQ Series
Carton - SCC-14 Next Lower Level Sub Pack00783936833323
Certifications
- EU RoHS Indicator
- Contact Manufacturer
