Killark

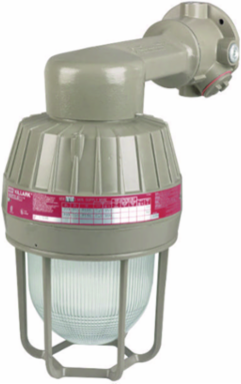

Killark EQF3230B2G 32W Fluorescent Wall Mount Fixture, 120-277V, 3/4 Inch Hub, Corrosion-Resistant

32W Fluorescent Wall Mount Fixture, 120-277V, 3/4 Inch Hub, Corrosion-Resistant
  • MPN: EQF3230B2G
  • UPC: 783936143484
  • PPN: HBL-EQF3230B2G

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3386.15/ EA

Description

32W Fluorescent 120-277V 3/4" Wall Mount with Guard

Features

  • Four light sources—Incandescent, compact fluorescent, high pressure sodium and metal halide
  • Mounting choice—Pendant, ceiling, 25? stanchion or 90? wall mount, all with “wireless” design that allows fast, easy fixture installation
  • Factory sealed—No external seal needed. Simply wire mounting cap and thread on fixture to install
  • Compact size—Medium base incandescent and HID lamps, plus PL fluorescent lamps allow smaller fixture design
  • Corrosion resistant—Copper-free aluminum die-cast construction. Baked powder epoxy finish, electrostatically applied. Exposed hardware is 316 grade stainless steel.
  • The EQF Series fixture an explosion proof fixture that uses Compact Fluorescent lamps. The housing is made of a corrosion resistant copper free aluminum that is coated with a powder epoxy paint for extra corrosion resistance. The EEQ Series is factory sealed so no external seal is required in Explosive environments.

Specifications

Specifications

Country of Origin
United States
Hub Size
3/4"
Voltage Rating
120-277 VAC
Frequency Rating
50/60 Hz
Mounting Type
Wall Bracket
ARRA Compliant
Contact Manufacturer
Description - Invoice
FLUOR 32W 120-277V 3/4" WALLGD
Harmonization Code
9405196020
MSDS Flag
No
Light Source
Compact Fluorescent
Series
EQF Series
Carton - SCC-14 Next Lower Level Sub Pack
00783936143484
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Optic TypeGlass Globe - Clear
Finish TypePowder Epoxy Paint
Lamp TypeQuad Pin
Wattage32 W
Class CodeD20
Freight Class Code06316009
Image Actual Or RepresentativeA
Sub Class CodeD20D201
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
