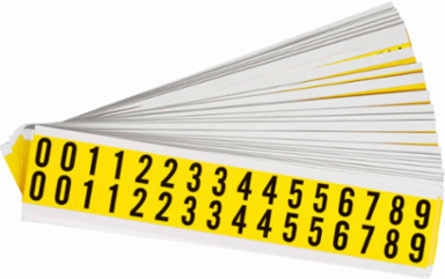

Brady 3420-# KIT Repositionable Number & Letter Labels, 0.75 Inch H x 0.563 Inch W, Vinyl Cloth
- MPN: 3420-# KIT
- UPC: 754473342524
- PPN: BRD-3420-# KIT
- UNSPSC: 55121721
CAD
$99.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Permanent or repositionable: once applied, 34 Series numbers & letters are there to stay… unless you want to change them.
Features
- Made of CleanLift® Series Vinyl Cloth (B-498) with repositionable rubber adhesive
- The adhesive and cloth backing offers excellent holding power, yet allow for clean removal and repositioning
- Sticks to any clean, dry surface
- Specially formulated topcoat for excellent print quality
- Each Card Contains: 2 columns of 0-5, 1 column of 6-9
Documentation & Downloads
Specifications
Key Specifications
- Applications
- General Identification; Wire and Cable Labeling
- Cards or Sheets per Pack
- 25
- Compatible Surface Types
- Low Surface Energy
- Finish
- Semi-gloss
- Mounting Type
- Self-Adhesive
- Primary Noun, Basic Function
- Label
- PSPA Photoluminescence Class
- Not Illuminated
- Reflective Type
- Non-Reflective
- Text Legend
- 0 to 9
- Adhesive Type
- Repositionable Rubber
- Illumination
- Not Illuminated
- Material
- Vinyl Cloth
- SAP B-Number
- B-498
- Character Height (mm/cm/m)
- 15.9 mm
- Depth (mm/cm/m)
- 0.19 mm
- Dimensions (Metric)
- 19.1 mm H x 0.19 mm D
- Height (in/ft/yd)
- 0.75 in
- Maximum Service Temperature °C
- 80 °C
- Minimum Application Temperature °C
- 10 °C
- Minimum Service Temperature °C
- -40 °C
- Sign Size
- 0.75 in H x 0.563 in W x 0.0073 in D
- Thickness (in/ft/yd)
- 0.0073 in
- Width (in/ft/yd)
- 0.563 in
Brand NameBrady®
ColorBlack on Yellow
Enables Industry ComplianceASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized
Label/Media FormatDie-Cut on Cards
National Stock Number (NSN)7690013060625
Printer and Label ApplicationsWire & Cable
Quantity per Card or Sheet32
SerializationConsecutive Numbers
Trade NameCleanLift
Brady Material NumberB-498
Label PropertiesRepositionable Labels
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
Character Height (in/ft/yd)0.625 in
Depth (in/ft/yd)0.0073 in
Dimensions0.75 in H x 0.563 in W x 0.0073 in D
Dimensions 20.75 in H x 0.563 in W
Height (mm/cm/m)19.1 mm
Maximum Service Temperature °F176 °F
Minimum Application Temperature °F50 °F
Minimum Service Temperature °F-40 °F
Sign Size-General0.75 in x 0.563 in
Thickness (mm/cm/m)0.185 mm
Width (mm/cm/m)14.3 mm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
