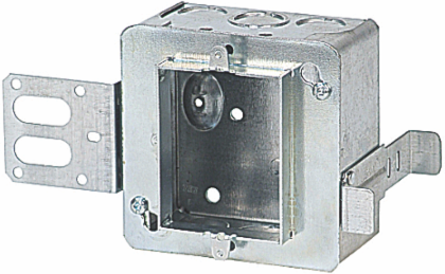

Thomas & Betts BC52171-KSSXHVKIT 347 Volt Boxes
Thomas & Betts BC52171-KSSXHVKIT 347 Volt Boxes
- MPN: BC52171-KSSXHVKIT
- PPN: T-B-BC52171-KSSXHVKIT
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$30.77/ EA
Description
4 inches square box 4 inches height x 4 inches width x 2-1/8 inches depth 33.6 cubic inches. Concentric knockouts (1/2 and 3/4 inch), mounting strap for steel stud installations and integral additional support bracket. Raised ground screw.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121309 Specialty electrical boxes
- Brand Name
- Iberville
- Special Features
- Tapped holes spaced 3-17/32 inches to accommodate 347 volts switches
- Number Of Outlet
- 1
- Size
- 4 inches Height x 4 inches Width x 2-1/8 inches Depth
- Cubic Capacity
- 33.6 Cubic Inches
IGCC4439 Specialty electrical boxes
Type347 Volt Boxes
StandardCSA 5043
MaterialSteel
ColorSilver
Knockouts8
European Specifications (ETIM)
- ETIM
- EC002600 Box/housing for surface mounting on the wall/ceiling
- Mounting method
- Wall-/ceiling mounting
- Width
- 101.6mm
- Weatherproof
- N
ShapeSquare
Length101.6mm
MaterialSteel
Packaging
- Outer Quantity
- 10
- Weight Uom
- 108.5 lbs. per 100
Outer Dimensions (inches)17.25x10.5x6.37
