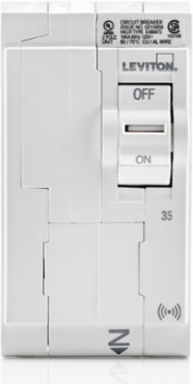

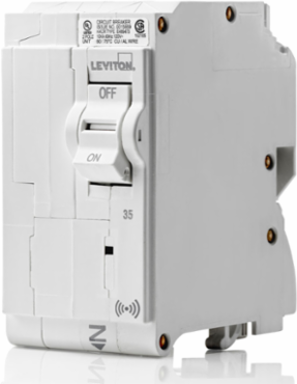

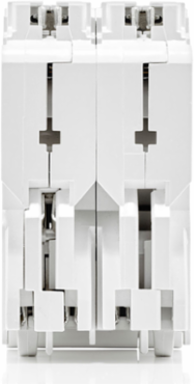

Leviton LB235-S 35A 2-Pole Smart Hydraulic Magnetic Circuit Breaker 120/240V
- MPN: LB235-S
- UPC: 078477941720
- PPN: LEV-LB235-S
CAD
$164.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Smart Branch Circuit Breaker, Standard 2-Pole 35A 120/240V, 10KA Interrupt Rating
Features
- SMART - Wi-Fi® or Ethernet connection options for remote monitoring and tripping capabilities, remote firmware updates and more
- INTUITIVE - My Leviton offers single app control of the control of the Leviton Smart Load Center and the Decora Smart™ Wi-Fi® product lines
- EASY - Allows for all wiring at rough-in, without any circuit breakers present
Documentation & Downloads
Specifications
Product Features
- Warranty
- 10-Year Limited
- Weight
- 0.85 lbs.
- Wiring
- All Plug-on
- Smart
- Yes
Dimensions3.9" H x 2.0" W x 3.1" D
Country Of OriginChina
Operating Temperature-40°C to 85°C
Standards & Certifications
- CSA-C22.2 No. 5-02
- Yes
- FCC
- Yes
- RoHS
- Yes
EMC CompatibilityYes
UL 489Yes
Electrical Specifications
- Amperage
- 35 A
- Type
- Standard
- Short Circuit Current Rating
- 10 KA
Pole2
Voltage120/240 VAC
