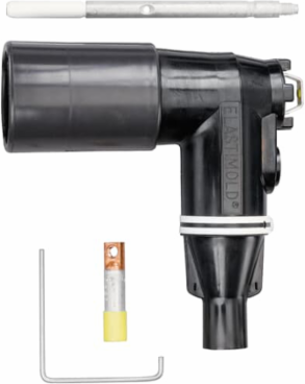

Thomas & Betts 375LR-H5250-S 35KV 200A LB ELBOW W-SEALING KIT
- MPN: 375LR-H5250-S
- UPC: 075114404679
- PPN: T-B-375LR-H5250-S
- UNSPSC: 39121421
CAD
$865.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
200 Amp, 35kV, Loadbreak Elbow Connector without Test Point, Cable Insulation Diameter 0.850 inch to 1.050 inch. Bi-Metal Compression Lug, Conductor Size AWG 3/0 Compressed/Stranded or 2/0 Solid/Compact. S - Cold-Shrinkable Jacket Seal.
Specifications
Additional Information
- Application
- 35 kv, 200 Amp
- Color
- Black
- Current Rating
- 200 A
- Environmental Conditions
- Fully Submersible
- Insulation Material
- Yes EPDM Rubber
- Product Main Type
- ELASTIMOLD 200A SEPARABLE CONNECTORS
- Product Type
- Loadbreak Elbow Connector
- Special Functions
- 35kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Connection TypePush-In
Effective Date20191010
Includes1 Elbow Connector Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube Lubricant, 1 Crimp Chart, 1 Installation Instruction Sheet
MaterialHousing - EPDM Rubber
Product NameELECTRICAL CONNECTOR>1000V
SizeCable Insulation Diameter 0.850 inch to 1.050 inch
StandardsANSI/IEEE Standard 386
Voltage Rating35 kV
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- IDEA Granular Category Code (IGCC)
- 4586 >> Electrical connector assembly
