Thomas & Betts 376LR-J5230-S Loadbreak Elbow Connector with Test Point

MPN: 376LR-J5230-S
UPC: 783786304561
PPN: T-B-376LR-J5230-S

$843.77

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

35kV 200 Amp, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.980 inch to 1.180 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41. 200ECS Jacket Seal Included.

Specifications

Packaging

Outer Quantity	12
Weight Uom	301 lbs. Each

Outer Dimensions (inches)	19.13x14.5x14

North American Specifications (UNSPSC)

UNSPSC	39121421 Electrical connector assembly
Brand Name	Elastimold
Special Features	35kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Non-Corrosive Capacitive Voltage Test Point.
Standard	ANSI/IEEE Standard 386
Connection	Push-in
Material	Housing - EPDM Rubber
Voltage Rating	35kV
Insulation	Yes, EPDM Rubber
Environmental Conditions	Fully Submersible

IGCC	4586 Electrical connector assembly
Type	Loadbreak Elbow Connector with Test Point
Application	35 kv, 200 Amp
Size	Cable Insulation Diameter 0.980 inch to 1.180 inch.
Conductor Range	Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41.
Color	Black
Amperage Rating	200 Amps
Temperature Rating	-20 Degrees C to +65 Degrees C

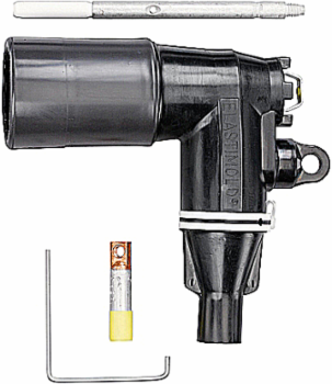

Consist Of	1 Elbow Connector Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube Lubricant, 1 Crimp Chart, 1 V.D. Cap-Peroxide, 1 Installation Instruction Sheet
