Thomas & Betts 376LR-K5260-SG3 35KV 200A LB ELBOW W/TP K5260-SG3
- MPN: 376LR-K5260-SG3
- UPC: 075114379496
- PPN: T-B-376LR-K5260-SG3
- UNSPSC: 39121421
CAD
$950.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

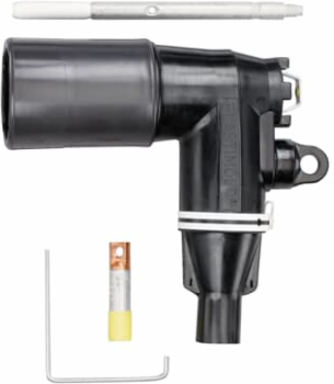

200 Amp, 35kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 1.090 inch to 1.310 inch. Conductor Size AWG Compressed/Stranded 3/0, Solid/Compact 4/0 /mmSquared 85.01. 200ECS-G3 Jacket Seal and Grounding Kit Included. Comes with Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.
Features
- SG3 Sealing Kit - Cold Shrinkable Seal with Copper Braid and Contant Force Spring
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | Elastimold |
| Connection | Compression |
| Size | 9.49 inch wide (not counting probe) |
| Material | Housing - EPDM Rubber |
| Color | Black |
| Insulation | Yes, EPDM Rubber |
| Environmental Conditions | Fully Submersible |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | 35kV, 200 Amps |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | 3/0 STR/COMPR AWG , 4/0 SOL/COMPT AWG |
| Voltage Rating | 35 kV |
| Amperage Rating | 200 A |
| Temperature Rating | -40 to +65 C |
