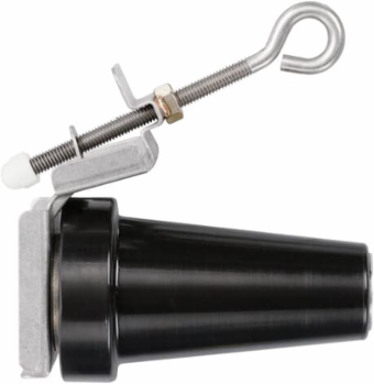

Thomas & Betts 750SOP 35KV 600 AMP STAND-OFF PLUG
- MPN: 750SOP
- UPC: 783786628803
- PPN: T-B-750SOP
- UNSPSC: 26121630
CAD
$529.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
35 kV, 600 Series Deadbreak Insulated Parking Bushing, Stand-Off Plug. Length 5.062 inch, Widest Diameter 3 inch. Epoxy.
Specifications
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Additional Information
| Application | The 750SOP is inserted into the parking stand with an insulated hot stick and secured in place. Mating Elastimold 755LR/756LR deadbreak elbows can then be placed on the 750SOP to provide a fully shielded and fully submersible connection. Provisions for grounding the 750SOP mounting bracket are included. |
|---|---|
| Effective Date | 19980115 |
| Product Name | ELECTRICAL CONNECTOR,>1000V" |
| Size | 3.00 inch (76.2 mm) Diameter, 5.00 inch (127.0 mm) Length, 5.02 inch (127.6 mm) Center of Bushing to top of Eye Bolt. |
| Standards | ANSI/IEEE Standard 386 |
| Brand / Label | Elastimold |
|---|---|
| Material | EPDM Rubber |
| Product Type | Parking Bushing |
| Special Functions | Fully rated 35kV, 600 Amp Deadbreak Insulated Parking Bushing. Allows visible external separation, isolation, and dead-ending. Stainless Steel Bracket. Hot Stick Operable. |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
