Thomas & Betts M465LR-N-2290 35KV 600 ELBOW - IEC STD
- MPN: M465LR-N-2290
- UPC: 075114184410
- PPN: T-B-M465LR-N-2290
- UNSPSC: 39121421
CAD
$983.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

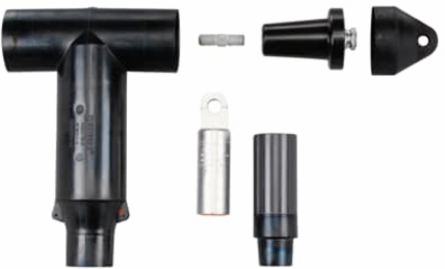

35kV, 630 Amp, Deadbreak Elbow, No Test Point, IEC-IEEE, No Sealing Kit. Cable Insulation Diameter 1.515 to 1.780 inch, Copper Lug, Wire Range 300 kcmil Stranded/Compressed or 350 kcmil Solid Compact or 150 mm2. 10.36 inch (264.1mm) x 13 inch (330.2mm) from Bottom to Center of Bushing. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions and Crimp Chart.
Features
- IEC
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Buy American Act (BAA) Compliant
- Contact Manufacturer
- Brand Name
- ELASTIMOLD
- Connection
- Compression
- Size
- 10.36 inch (264.1mm) x 13 inch (330.2mm) from Bottom to Center of Bushing
- Material
- Housing - EPDM Rubber
- Color
- Black
- Insulation
- Yes EPDM Rubber
- Environmental Conditions
- Fully Shielded, Fully Submersible
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
Application35kV, 630 Amp Connections
StandardANSI/IEEE Standard 386. IEC Standard
Conductor Range300 kcmil , 350 kcmil
Voltage Rating35 kV
Amperage Rating630 A
Temperature Rating-40 to +65 C
