Thomas & Betts 755LR-L0250 35KV 600A DB ELBOW ASSEMB L0250
- MPN: 755LR-L0250
- UPC: 075114401470
- PPN: T-B-755LR-L0250
- UNSPSC: 39121421
CAD
$1556.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

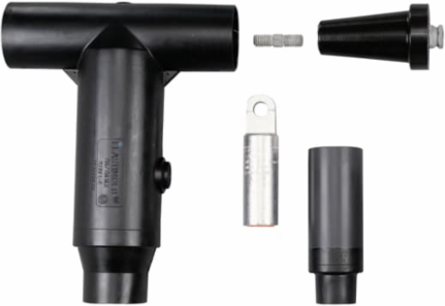

600 Amp, 35 kV, 600 Series Deadbreak Elbow (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size 250 - 2/0 Compressed Stranded AWG or 3/0 Compacted Solid AWG.
Specifications
Additional Information
- Application
- Designed to provide Fully Shielded, Dead-Front Submersible Cable Connections to High-Voltage Apparatus.
- Color
- Black
- Current Rating
- 600 A
- Environmental Conditions
- Fully Submersible
- Material
- Housing - EPDM Rubber
- Product Type
- Deadbreak Elbow Connector
- Special Functions
- 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Can be Easily Connected or Disconnected Using Standard Hand Tools and Equipment in a De-energized State. Optional Accessories allow Visible External Separation, By-Pass, Isolation, Dead-Ending, Grounding, and Testing as well as Adding Taps, Surge Arrestors, and Fault Current Indicators .
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Connection TypeCompression
Effective Date20190604
Insulation MaterialYes EPDM Rubber
Product NameELECTRICAL CONNECTOR,>1000V
Size12.29 inch wide x 13.93 inch long from bottom edge to Center of Probe
StandardsANSI/IEEE Standard 386
Voltage Rating35 kV
Classifications
- IDEA Granular Category Code (IGCC)
- 4586 >> Electrical connector assembly
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
