Thomas & Betts 756LR-G0250-SG3 35KV 600A DB ELBOW W-SEALING KIT
- MPN: 756LR-G0250-SG3
- UPC: 075114407175
- PPN: T-B-756LR-G0250-SG3
- UNSPSC: 39121421
CAD
$1698.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

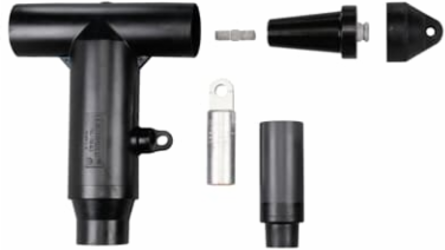

35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 0.760 inch to 0.950 inch. Conductor Size AWG or kcmil, Compressed Stranded 2/0 or Compacted Solid 3/0. Cold Shrinkable Seal with Copper Braid and Constant Force Spring. Width 12.28 inch, Length 13.93 inch from bottom edge to Center of Bushing. Diameter 3.83 inch.
Features
- 35kV, 600 Amp Deadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Buy American Act (BAA) Compliant
- Contact Manufacturer
- Brand Name
- ELASTIMOLD
- Connection
- Compression
- Size
- Width 12.28 inch, Length 13.93 inch from bottom edge to Center of Bushing. Diameter 3.83 inch
- Material
- Housing - EPDM Rubber
- Color
- Black
- Insulation
- EPDM Rubber
- Environmental Conditions
- Fully Submersible
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
Application35 kv, 600 Amp
StandardANSI/IEEE Standard 386
Conductor Range2/0 STR/COMPR AWG , 3/0 SOL/COMPT AWG
Voltage Rating35 kV
Amperage Rating600 A
Temperature Rating-40 to +65 C
