Thomas & Betts 755LR-N0380 35KV 600A DB ELBOW WO/TP N0380

MPN: 755LR-N0380
UPC: 783786646760
PPN: T-B-755LR-N0380
UNSPSC: 39121421

$1515.27

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

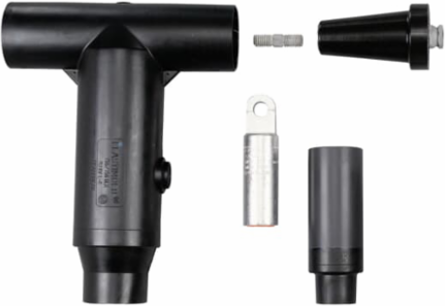

600 Amp, 35kV, 600 Series Deadbreak Elbow (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.

Specifications

Classifications

WEEE Category	Product Not in WEEE Scope

IDEA Granular Category Code (IGCC)	4586 >> Electrical connector assembly

Additional Information

Application	Designed to provide Fully Shielded, Dead-Front Submersible Cable Connections to High-Voltage Apparatus.
Color	Black
Effective Date	19980108
Insulation Material	Yes, EPDM Rubber
Product Name	electrical connector,>1000v"
Size	Cable Insulation Diameter 1.515 inch to 1.780 inch.
Standards	ANSI/IEEE Standard 386
Voltage Rating	35 kV

Brand / Label	Elastimold
Current Rating	600 A
Environmental Conditions	Fully Submersible
Material	Housing - EPDM Rubber
Product Type	Deadbreak Elbow Connector
Special Functions	100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Can be Easily Connected or Disconnected Using Standard Hand Tools and Equipment in a De-energized State. Optional Accessories allow Visible External Separation, By-Pass, Isolation, Dead-Ending, Grounding, and Testing as well as Adding Taps, Surge Arrestors, and Fault Current Indicators .
Temperature Range	-40 to +65 °C
